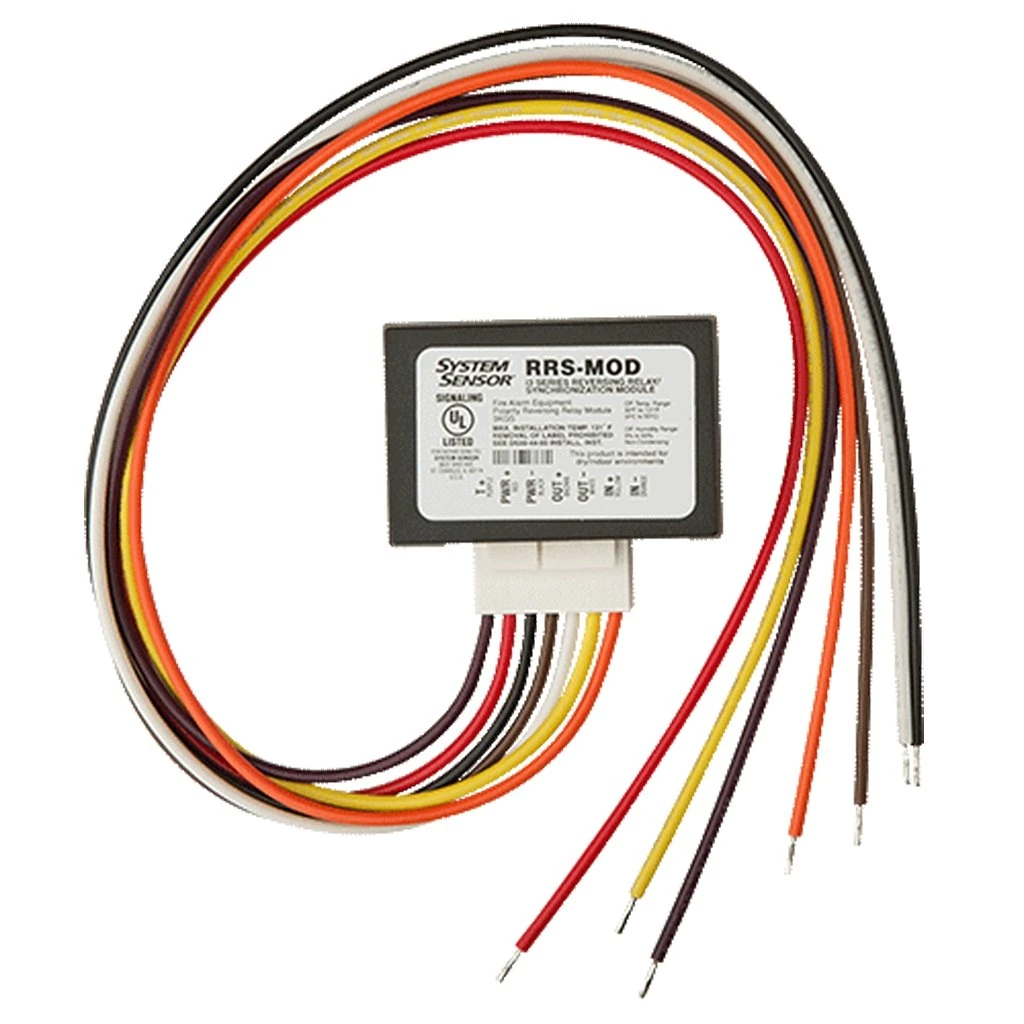

System Sensor RRS-MOD Reversing Relay For Smokes With Built-In Sounders

System Sensor RRS-MOD Reversing Relay For Smokes With Built-In Sounders

This is used to make all of the smoke detector sounders of your smoke detectors go off at the same time when one is triggered. If you have a circuit of smoke detectors ran all on the same zone then this can trigger all the other smokes in the line when one is tripped. This will help alert anyone in the area where the smokes are placed that there is a fire and they need to exit the building.

Dimensions
2.5 in H x 2.5 in W x 1 in D (63 mm x 63 mm x 25 mm)

Operating Temperature Range
32 F to 131 F (0 C to 55 C)

Wire Connections
18 AWG stranded, tinned, 16 in length

Operating Humidity Range
5% to 85% non-condensing

Electrical Specifications

Operating Voltage
Nominal: 12/24 V
Min: 8.5 V
Max: 35 V

Average Operating Current:
25 mA
Relay Contact Rating
2 A @ 35 VDC

---

• Is compatible with 2- and 4-wire i3 detectors equipped with a sounder
• Activates all i3 sounders on a loop when one alarms
• Synchronizes all i3 sounders on the loop for a clear alarm signal
• Is usable with bell/alarm, alarm relay, or NAC outputs
• Has a field-selectable switch to accommodate both coded and continuous alarm signals
• Allows i3 detector silencing from the panel or keypad
• Operates on 12 and 24 volt systems
• Simplifies connections with quick-connect harness and color-coded wires
