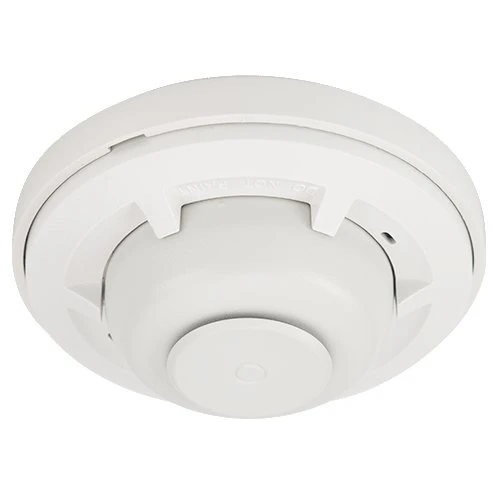

System Sensor 5601 135 Degree ROR Heat Detector

System Sensor 5601 135 Degree ROR Heat Detector

The System Sensor brand are an inexpensive and attractive line of heat detectors that will provide 24 hour protection for your location without breaking your budget! The System Sensor 5601 135 Degree / rate of rise heat detector triggers at 135 degrees or if the temperature rises faster than 15 degrees a minute.

Specifications

Maximum Installation Temperature 5601 (38 C)
Operating Humidity Range 5 to 95% RH non-condensing
Dimensions with mounting bracket Diameter: 4.57 inches (11.6cm)
Height: 1.69 inches (4.3cm)
Alarm Temperature 5601 (57 C)
Weight 6 oz. (170 grams)
Rate-of-Rise Threshold 15 F (8.3 C)
Mounting 3-inch octagonal back box
4-inch octagonal back box
Single gang back box
4-inch square back box with a square to round plaster ring
Electrical Specifications
Operating Voltage / Contact Ratings 6 125VAC / 3A
6 28VDC / 1A
125VDC / 0.3A
250VDC / 0.1A
Input Terminals 14 22 AWG

5600-series manual
5600-series data sheet

---

• Multiple configurations for installations:
• Single- and dual-circuit models
• Fixed temp and combination fixed- temp/rate-of-rise 135 F or 194 F ratings.
• Plain housing for residential installations (Model 5601P)
• Easy-to-use terminal screws
• A broad range of back box mounting options:
• Single gang
• 3.5˝ and 4˝ Octagonal
• 4˝ square with square to round plaster ring
• Reversible mounting bracket
