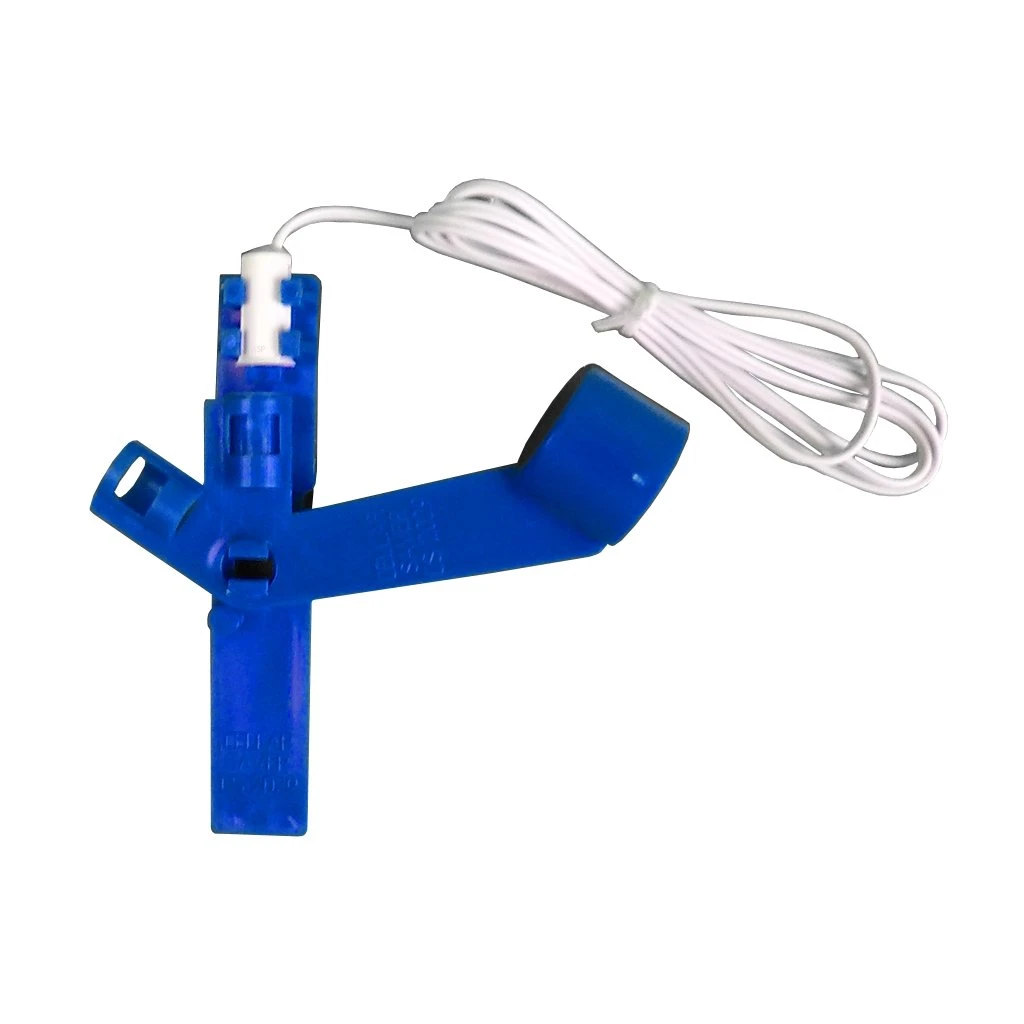

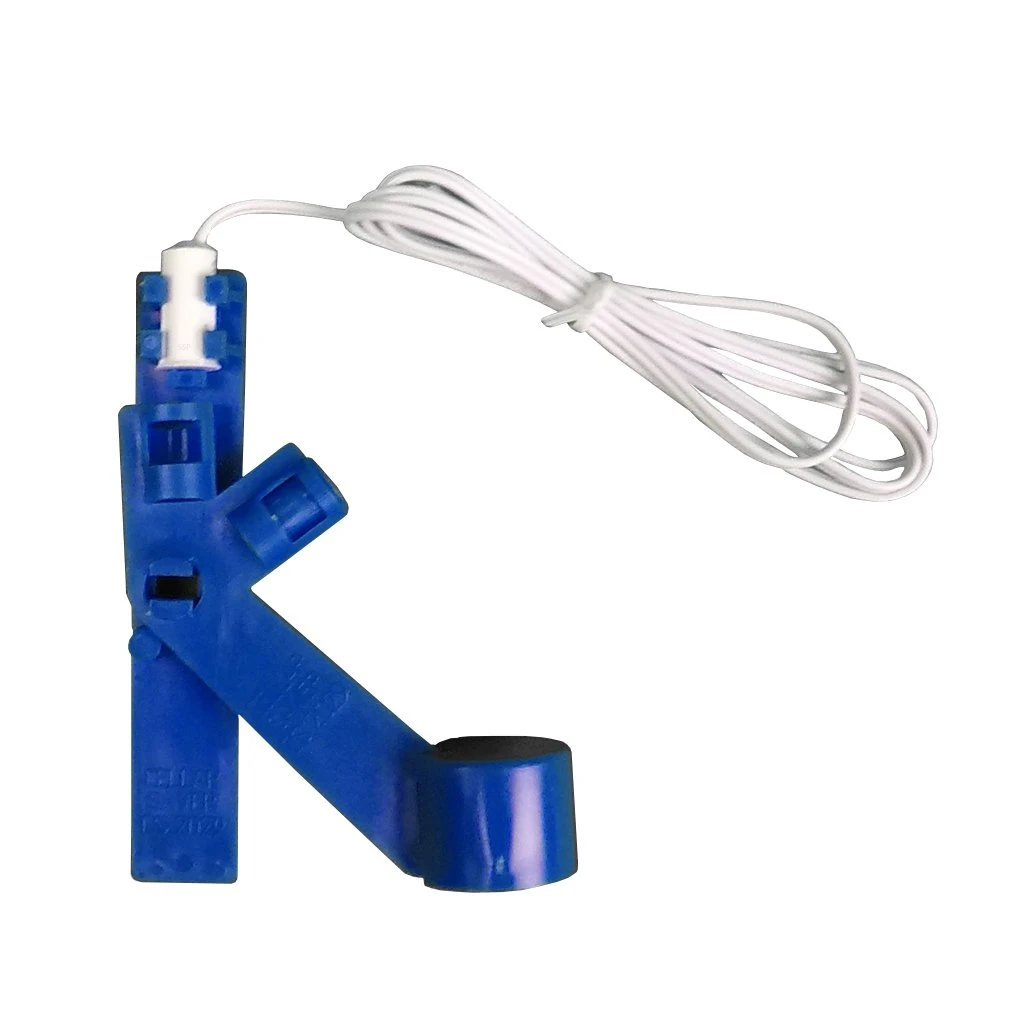

Sump Pump Alarm Float Switch CS1829C/O

Sump pump alarm float switch CS1829C/O

This sump pump alarm float switch is for use with alarm systems to provide a warning if the water rises too high in the your pump basket / bucket indicating a possible failure in the pump. This is a non powered mechanical device with both a normally open and normally closed magnetic switch.

Specifications:

Overall height…………4 1/2″
Overall width…………3 ”
Total width in alarm…3 9/16″
Width of base…………3/4 ”
Top of base holds standard 3/8 press fit contact.
Swing-arm top has 1/4 ” magnet encased in rust resistant coating.
Swing-arm bottom has inverted air-lock float.
Shipped with an eleven inch tie-wrap for mounting on vertical flow pipe in sump well.
