Honeywell Tuxedo Touch Security Keypad And Smart Controller

Honeywell Tuxedo Touch Security Keypad and Smart Controller

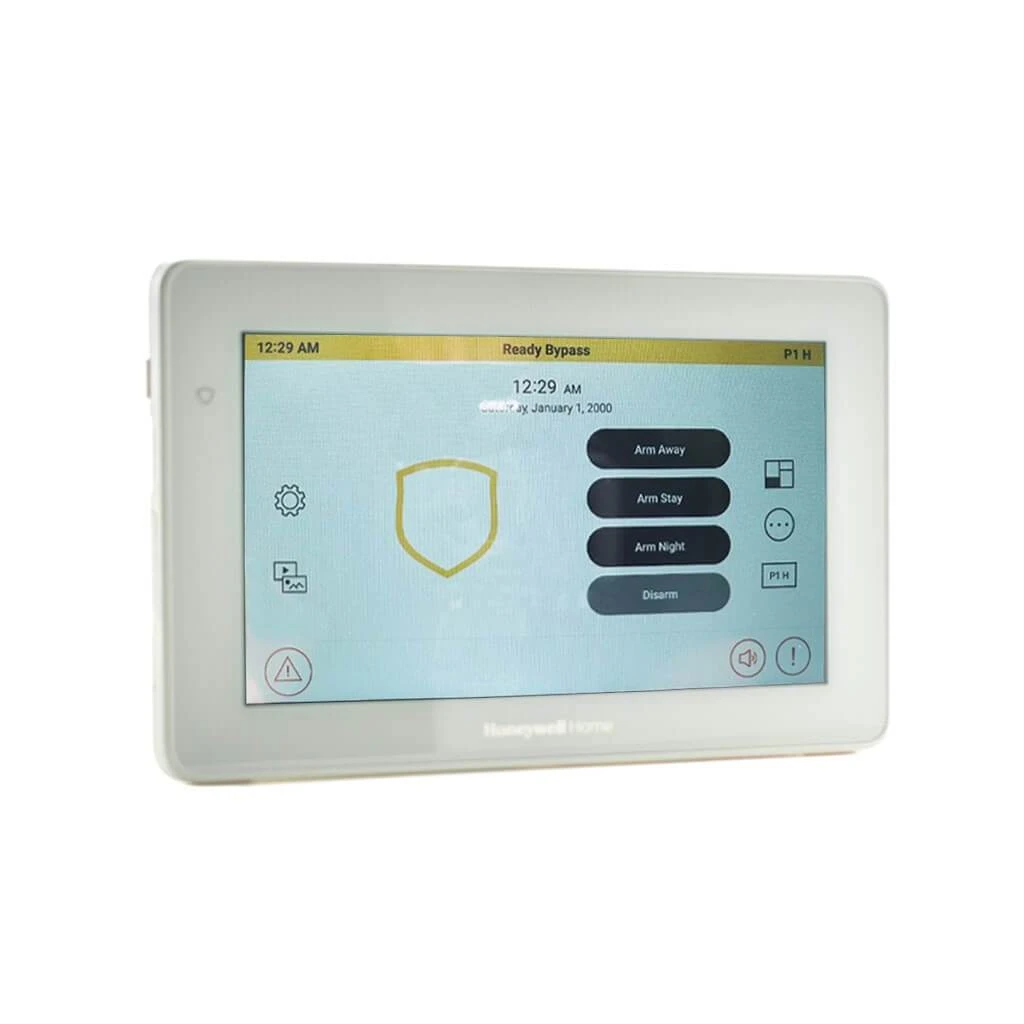

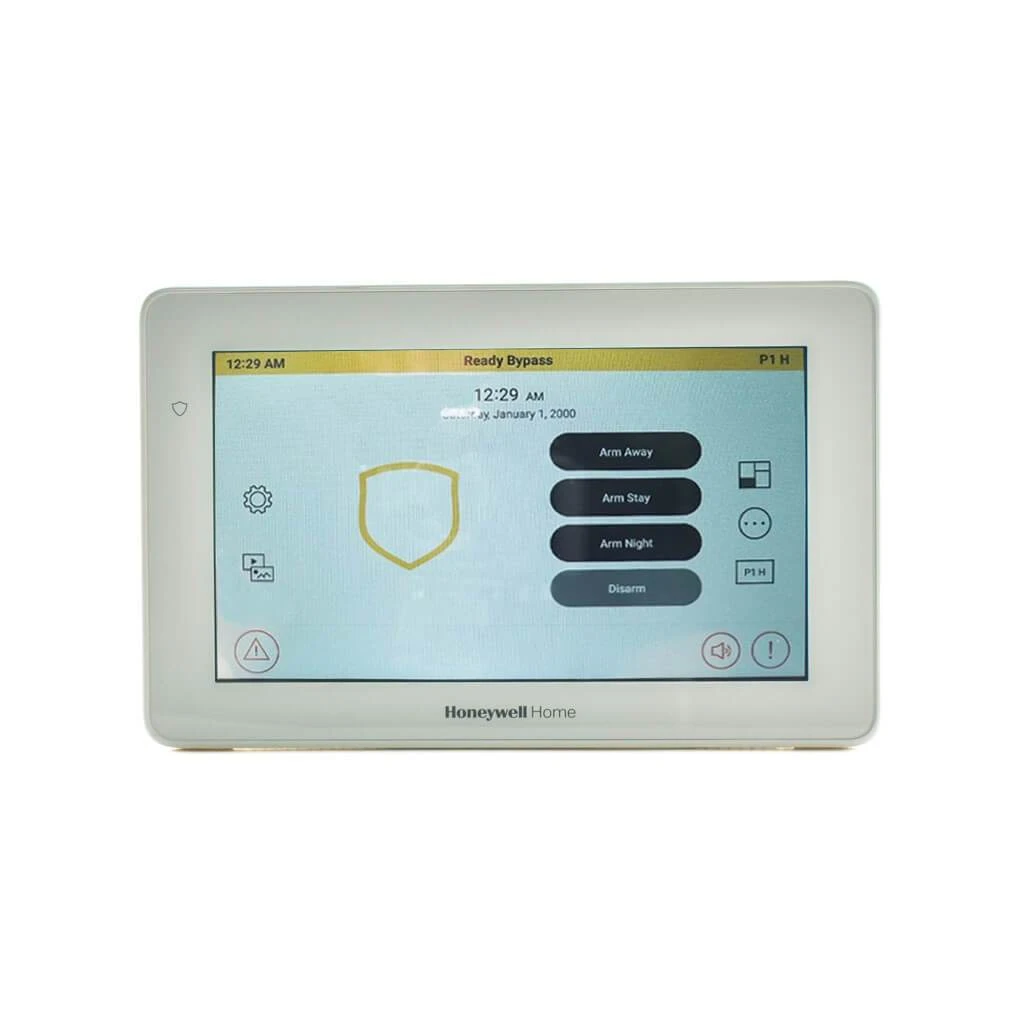

 The TUXEDOW keypad is the replacement for the TUXWIFIW and has a few enhancements over the older keypad. This newer version has a sleek design that has Android tablet feel and measures in at 7.94″ W x 5.06″ H x 0.76″ D. The TUXEDOW has a digital color high-resolution 7″ TFT WSVGA display screen. The resolution is 1024 x 600.

Built into this keypad is a ZWave control that will allow you to add up to 232 ZWave devices, including ZWave Plus devices, to your local ZWave network. The TUXEDOW will let you set up to 10 scenes that can be activated by time, day, action, or conditions.

This intuitive touchscreen keypad is icon menu driven. The keypad also voice announces system status such as the arming state. You can also view up to 8 IP cameras on the keypads screen and the cameras are viewable in 1-4 at a time views. This keypad also boasts a built-in web server that allows you to interface with it via your Local Areaa Network through any WIFI enabled device. You can also update the TUXEDOW’s software through the internet if using a service like Total Connect or by using the SD card slot and loading it that way.

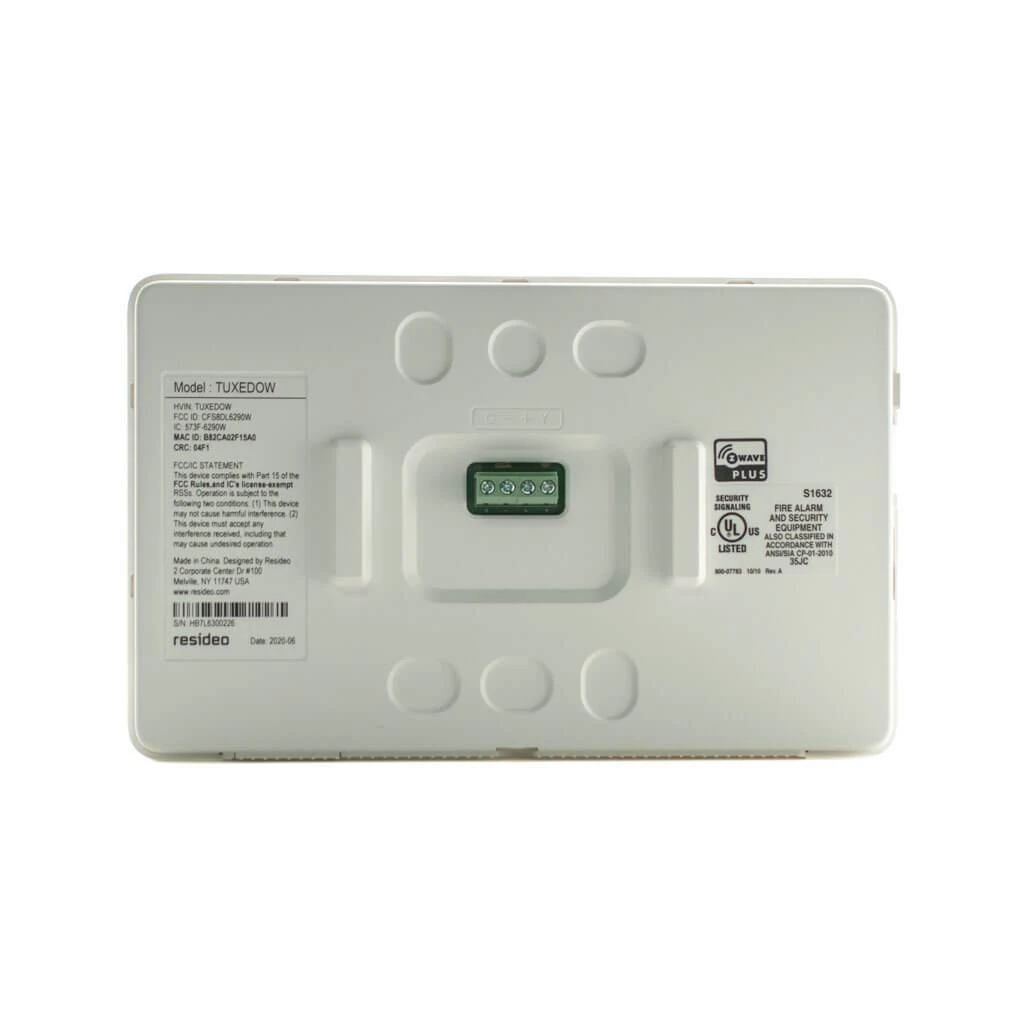

The including backplate allows you to retrofit this keypad to existing 6160 or 6280W installations.

TUXEDOW Installation Instructions

TUXEDOW Quick Install Guide

TUXEDOW Quick User Guide

TUXEDOW Data Sheet
