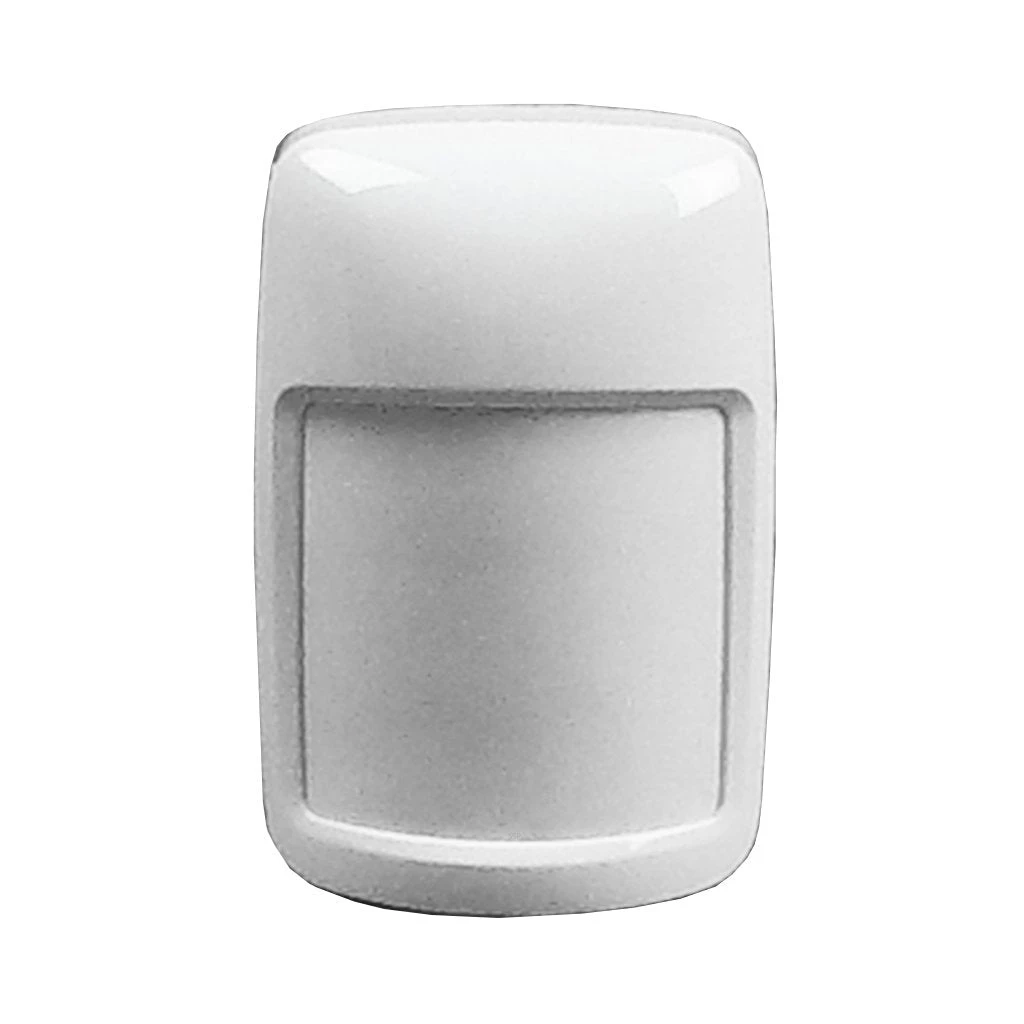

Honeywell IS335 Motion Sensor

Honeywell IS335 Motion Sensor

The Honeywell IS335 hardwired motion detector is an economical, easy to install motion detecting solution for your hardwired alarm system. This motion detector features selectable pet immunity for pets up to 80 lbs. and has a range of 40 x 56 ft. The reach of this motion is really impressive compared to other motions in its price range and will make a great addition to your system.

The IS335 has white light immunity up to 2,000 lux and accomplishes this with the addition of a black bug guard. No longer will your motion be tripped by common annoyances such as lights, flashlights or reflective objects.This also has a sealed optics chamber that will keep bugs or drafts from affecting the performance of the motion’s detecting capabilities. The Fresnel lense in the IS335 insures that makes sure that no matter if the intruder is standing right in front of it or just at the edge of range; they’ll be detected and an alarm condition will incur

Specifications:

RFI Immunity
20V/m 10-1000 MHz, 15V/m 1000-2700 MHz

PIR White Light Immunity
2,000 Lux typical

Operating Temperature
14 F to 131 F/-10 C to 55 C

Dimensions
3.39″ H x 2.24″ W x 1.71″ D/8.6 cm H x 5.7 cm W x 4.35 cm D

Weight
2.15 oz/61 g (net weight)

Pet Immunity
≤ 80 lbs./36kg

IS335 Installation manual
IS335 Data sheet

---

Sealed Optics
The sealed optical chamber prevents drafts and insects from affecting the detector.

Uniform Sensitivity Optics
Whether an intruder is directly in front of the sensor or at the edge of a protected area, the custom designed Fresnel lens provides a consistent level of detection?delivering optimal performance no matter what the distance. Shorter precision focal lengths mean superior optics and detection.

Wall-to-Wall Coverage
Wide and long detection coverage for coverage range protection that exceeds similar products in the market.

Superior Detection and False Alarm Immunity
The IS335 motion detector provides superior protection against false alarms without sacrificing catch performance.

Pet‑friendly Selectivity
Installers can turn pet immunity on or off simply by setting a jumper. When pet immunity is enabled, the detector can distinguish between signals caused by humans while ignoring pets up to 80 lbs.

PIR White Light Immunity
A patented black bug guard reduces false alarms by providing 2,000 lux of white light immunity. This helps reduce false alarm problems caused by lights, flashlights or reflective objects.

Flexible Mountings
The IS335 motion detector mounts on walls or in corners, with heights from 7 ft – 9 ft (2.1 m – 2.7 m).
