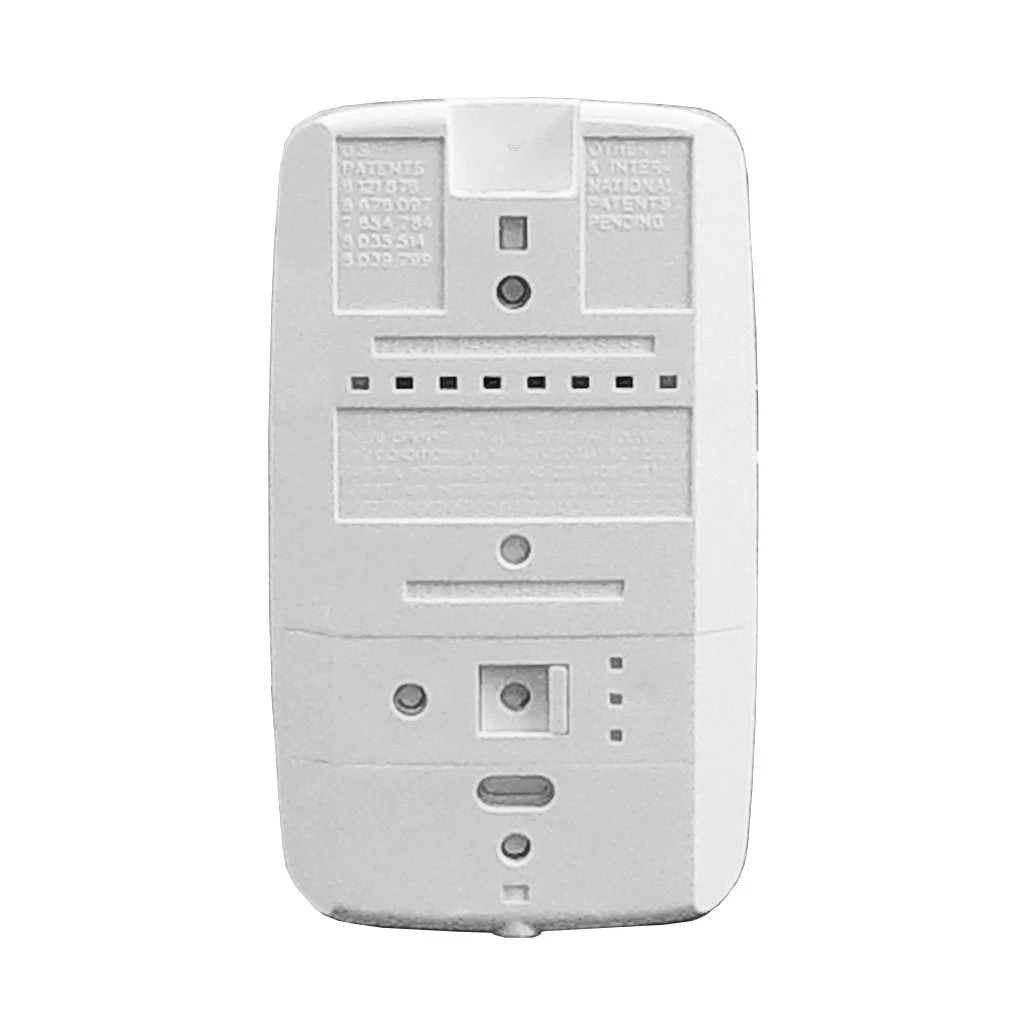

Honeywell IS3035V PIR Motion Detector - Image 2

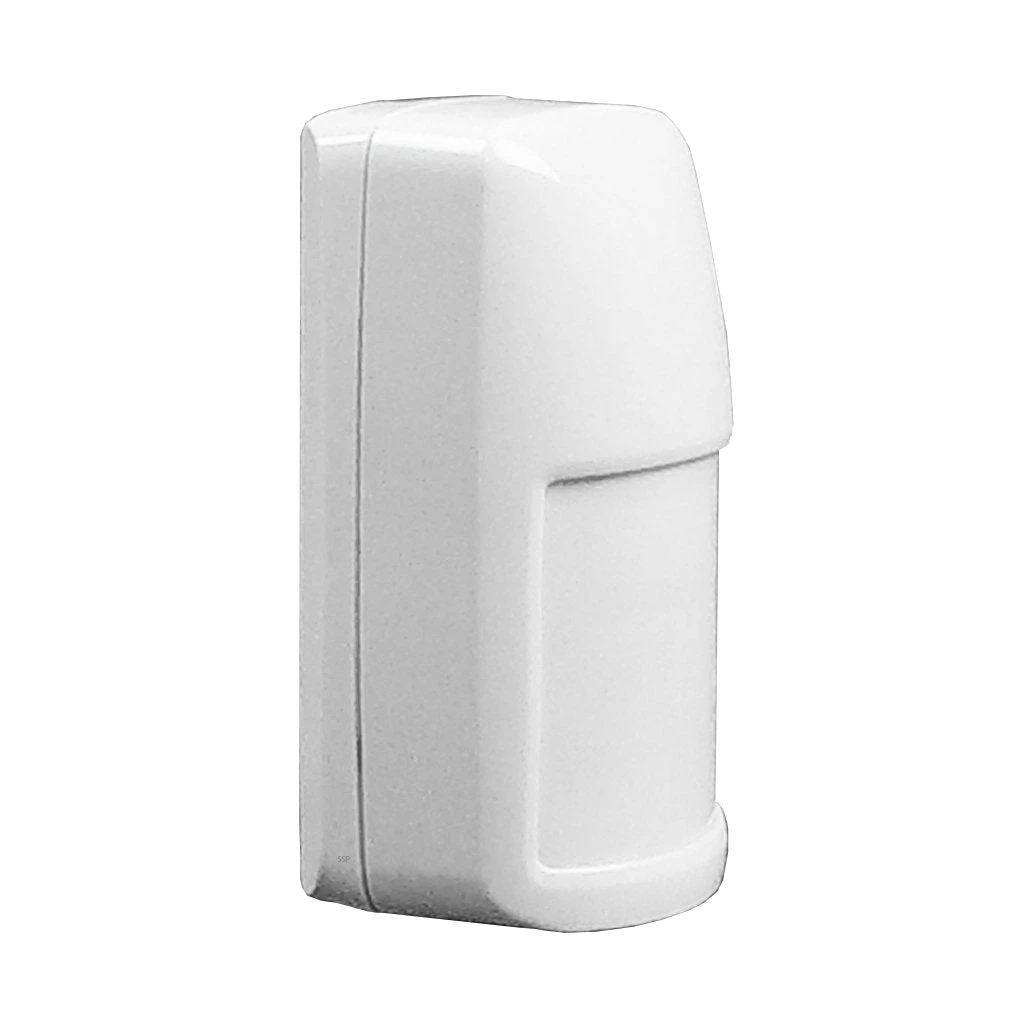

Honeywell IS3035V PIR Motion Detector - Image 3

Honeywell IS3035V PIR Motion Detector - Image 4

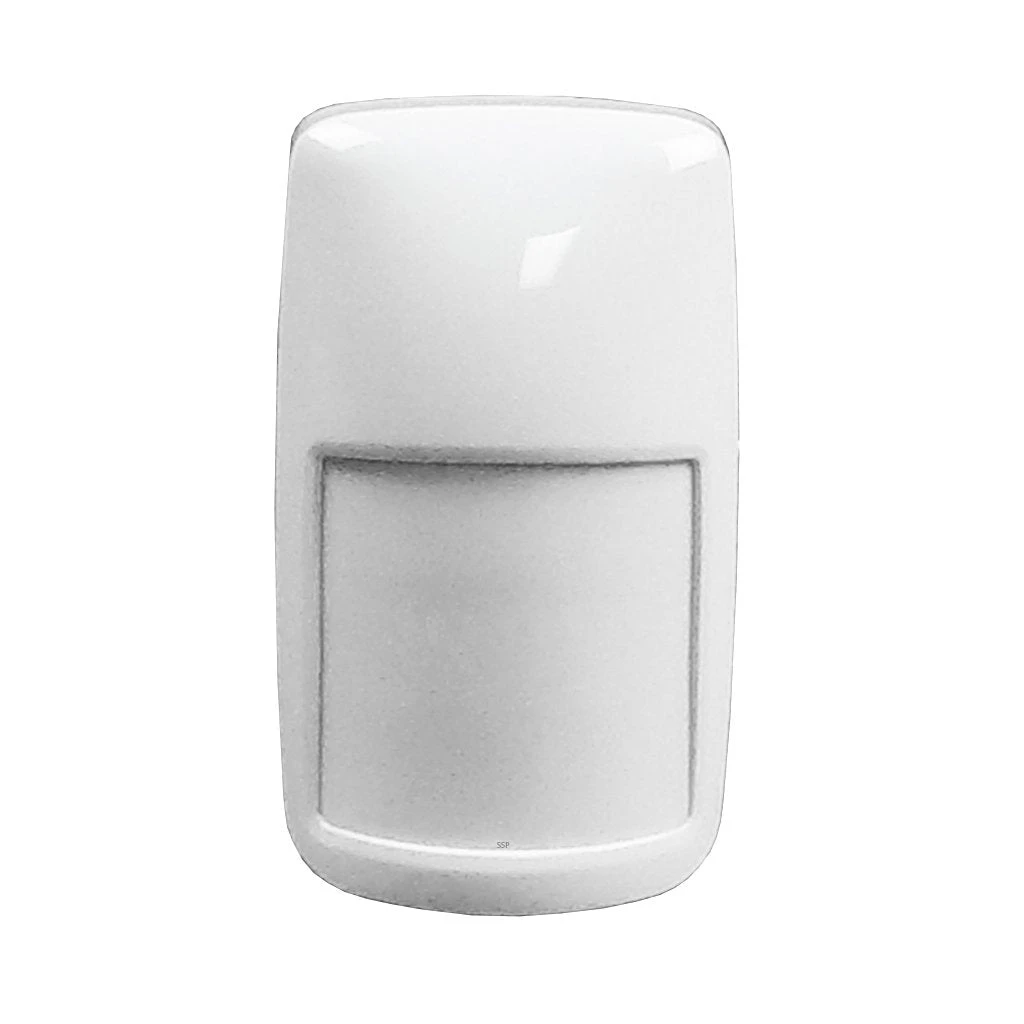

Honeywell IS3035V PIR Motion Detector

Original price was: $34.95.Current price is: $24.47.

SKU: YWXHC 7037361413 Categories: Alarm Parts & Accessories, Hardwired Sensors Detectors Tags: Hardwired Sensors, Motion Detectors

Your needs, our top priority.
Efficient and effective customer service, online.
Streamlined service, designed for your convenience.
Green products, guaranteed.

Description
Reviews (0)

Honeywell IS3035V PIR Motion Detector

The Honeywell IS3035V PIR Motion Detector is an upgraded version of Honeywell’s IS2535 and will provide your home or business with the best in motion detection that the industry has to offer. This is a dual technology motion detector which means that it will use its built-in DualCore signal processor will analyze PIR and microwave signals through the microcontroller. This will help cut down on motion detector false alarms because two ranges need to be tripped before sending an alarm signal to the main panel.

The IS3035V is also “pet friendly” as it allows you to, with the flip of a dip switch, set it to be able to distinguish between human movement and animal movement for pets up to 100 lbs. This also features white light immunity which means that the detector won’t be set of by flashes of light such as flashlights, car headlights or any other flash of bright light.

This is a great addition to your hardwired security system.

SPECIFICATIONS

Range
40′ x 56’/12 m x 17 m

Power
9.0 – 15 VDC; 11 mA typical, 13 mA maximum;
AC Ripple: 3 V peak-to-peak at nominal 12 VDC

Alarm Relay
Energized Form A; 30 mA, 25 VDC,
22 Ohms resistance maximum.
Alarm Relay Duration: 3 seconds

Tampers
Cover & Wall; (NC with cover installed) Form A;
30 mA, 25 VDC

Microwave Frequency
–

RFI Immunity
20V/m 10-1000 MHz, 15V/m 1000-2700 MHz

PIR White Light Immunity
6,500 Lux typical

Fluorescent Light Filter
–

Operating Temperature
14 F to 131 F/-10 C to 55 C

Relative Humidity
5 to 93%; non-condensing

Temperature Compensation
Advanced Dual Slope

Dimensions
3.86″ H x 2.24″ W x 1.71″ D/
9.8 cm H x 5.7 cm W x 4.35 cm D

Weight
3 oz/85 g (net weight)

Pet Immunity
≤
80 lbs./36kg

IS3035 Installation manual
IS3035 Data sheet

Sleek, Sturdy Housing

The sleek, sturdy housing blends with any residential or commercial interior and constructed ABS plastic for superior shock and impact protection. It contains a convenient wiring channel, knockouts for mounting and wiring, and easy access to terminals. Mounting screws are located in the rear cover? Enabling easier installation.

Sealed Optics and Electronics

The optics and electronics are assembled into the front enclosure and sealed with a protective cover to prevent damage during installation. The sealed optical chamber also prevents drafts and insects from affecting the detector.

Integrated Screw Retention Features

To mount the detector on the wall, the installer will insert the screw in the integrated mounting feature where it will be automatically held in place, making mounting the detector easy and quick.

Uniform Sensitivity Optics

The custom-designed Fresnel lens provides the same sensitivity for human targets at the edge of the pattern as exists directly in front of the detector, giving these detectors consistent coverage throughout the protected area. In addition, shorter precision focal lengths mean superior optics and detection.

Wall-to-Wall Coverage

Wide and long detection coverage with look-down zone for coverage range protection that exceeds similar products in the market.

Advanced DualCore Signal Processing (DUAL TEC)

DualCore signal processing analyzes PIR and microwave signals through the microcontroller. It supports many advanced functions, including concurrent diagnostics, digital fluorescent light interference filter, digital adaptive microwave threshold, adaptive baselines, and bidirectional temperature compensation.

Superior Detection and False Alarm Immunity

The IS3000 and DT8000 detectors provide superior protection against false alarms without sacrificing catch performance.

Pet-friendly Selectivity

Installers can turn pet immunity on or off with the flip of a DIP switch. When pet immunity is enabled, the detector can distinguish between signals caused by humans and signals caused by pets up to 100lbs.

Selectable Look Down

Provides better coverage up close with multiple zones in the look-down area. Look down is switch selectable.

PIR White Light Immunity

A patented black bug guard reduces false alarms by providing 6,500 lux of white light immunity. This helps reduce false alarm problems caused by lights, flashlights, or reflective objects.

Flashlight Walk Test

Reduces installation time as the walk test can be enabled by simply waving a flashlight at the detector. Automatically times out.

Flexible Mountings

The IS3000 and DT8000 motion detectors mount on walls or in corners, with heights from 6’9″ – 8’9″ (2.1 m – 2.7 m). The IS3000 and DT8000 family works with the SMB10 family of swivel brackets.
