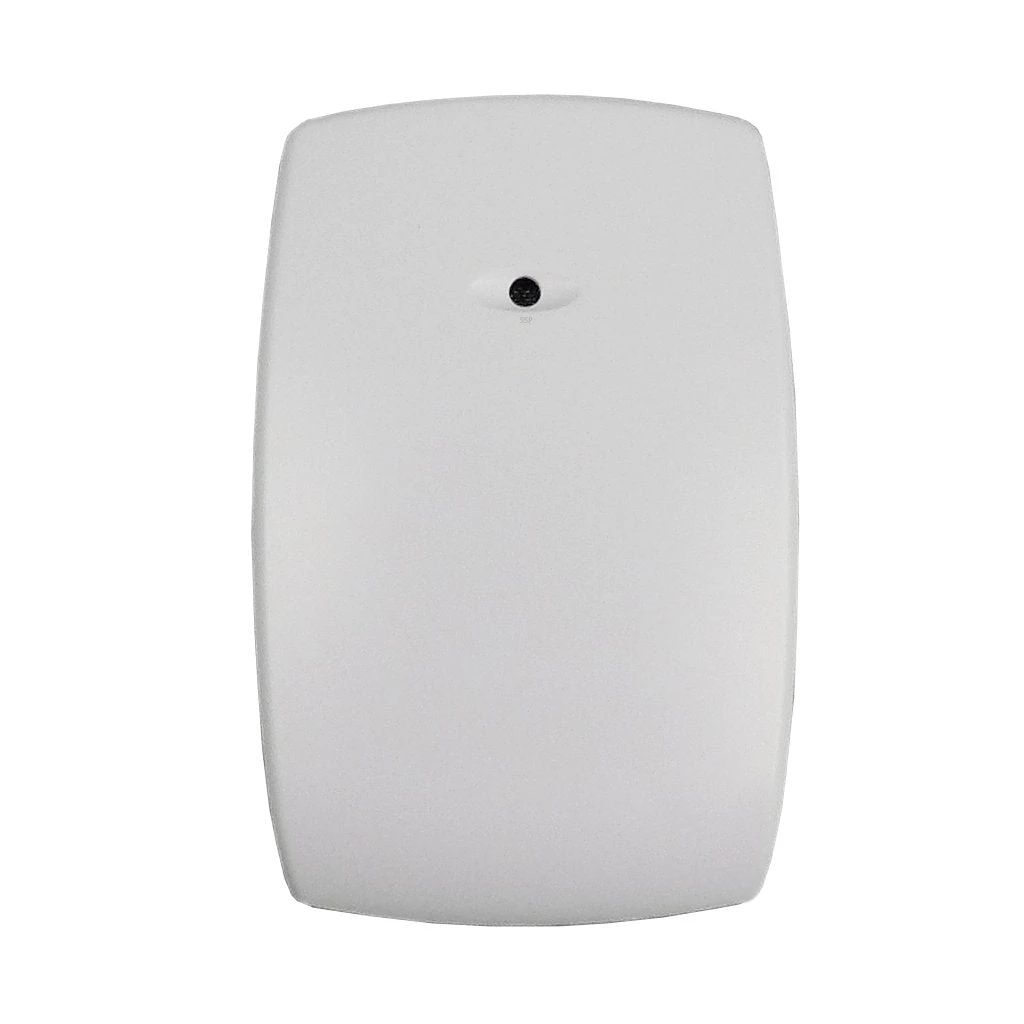

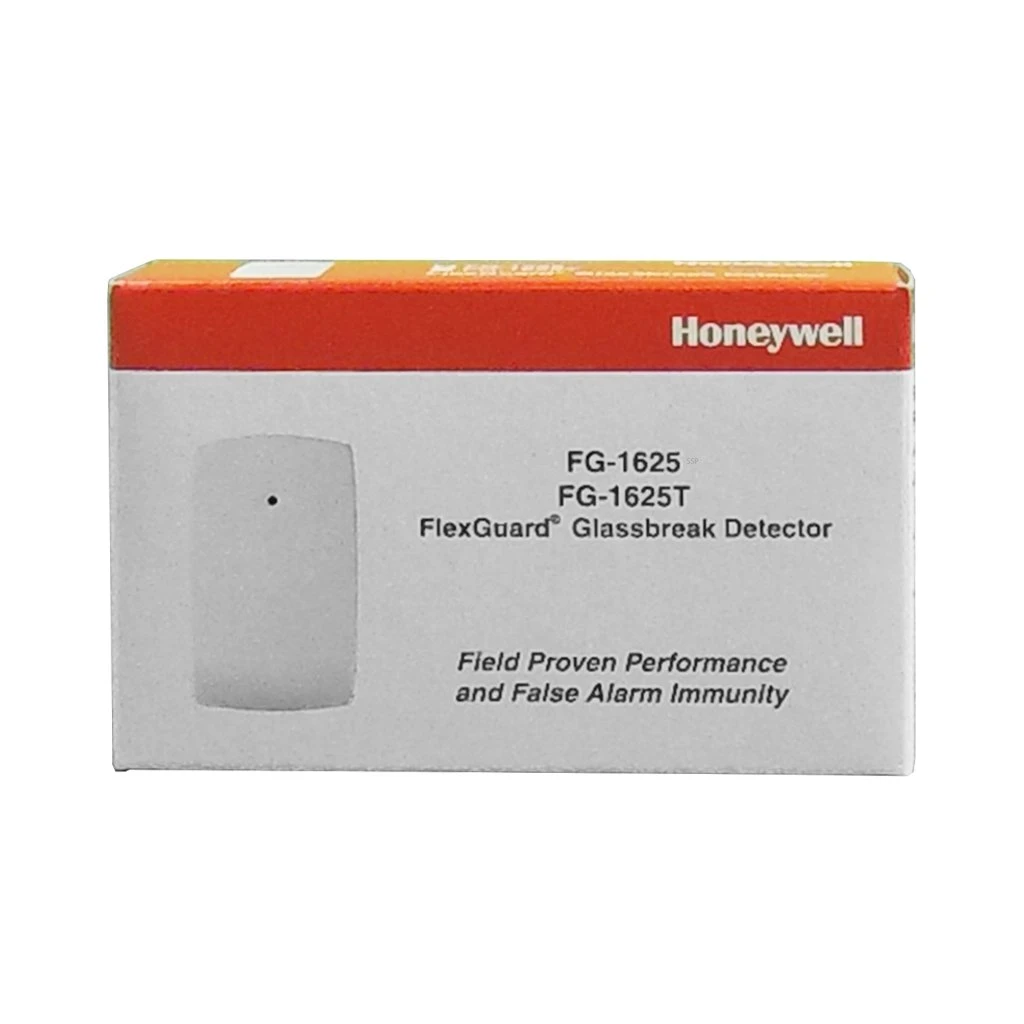

Honeywell FG1625 Glassbreak Detector

Honeywell FG1625 Glassbreak Detector

Yet another another glasbreak sensor from Honeywell that utilizes the Flex-Core processing. Distinguish between real breaking glass and false alarms with this new innovative technology. This unit is easy to setup and install and can be remotely tested with a simulator.

The FG1625 has two DIP switches internally that you can use to set the sensitivity to match the acoustics in the room that you install it in. There is no minimum range and the max range is twenty five feet. It can detect breaks on all kinds of glass.

Specifications:

Physical Dimensions
White high impact ABS plastic
housing
3 7/8″ H x 2 2/5″ W x 7/8″ D
(98mm x 62mm x 21.8mm)

Range
25′ (7.6m) maximum, omnidirectional. Range is adjustable; no minimum range

Power Requirements
6 – 18VDC, 12mA typical at12VDC; 22mA max (Latched LED)
AC ripple: 4V peak-to-peak atnominal 12VDC

Operating Temperature
14° to 122° F (-10° to 50° C)
Storage: -4° to 122° F (-20° to 50° C)

FG-1625 Installation manual
FG-1625 Data sheet
