Honeywell 6160RF Custom Alpha Security Keypad

Honeywell 6160RF Custom Alpha Security Keypad

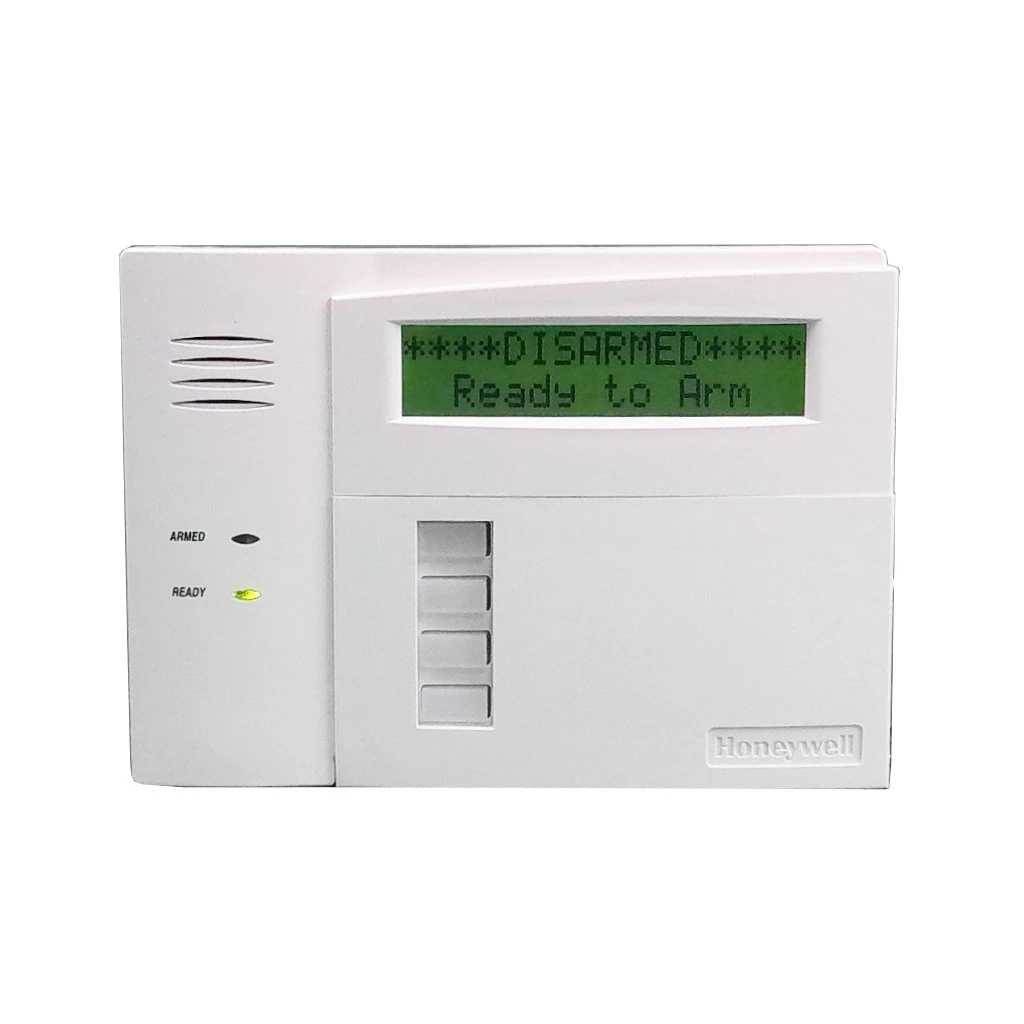

Ademco 6160 Easy to Read Alpha Display Keypad has a 32 character display with easy to read text that is spelled out in plain english. It features four oversized funtions keys which are accessible while the keypad door is closed.

The four function keys on the left side of the keypad can be used for panic keys so that you may press these in case of an emergency such as a break in, fire or medical situation. The function keys are large, easily seen and accessible even when the front cover is closed. This keypad also features a built-in wireless receiver that will let you use any of Honeywell’s 5800 series wireless devices such as window/door contacts, motion sensors, glass breaks, etc.

The usual wireless range for Honeywell wireless devices is a 200′ radius out from the receiver. The receiver in the 6160RF works on the same premise as the 5881ENH wireless receiver in that it will allow you to use as many wireless zones as your Vista panel can utilize. This would be 26 wireless zones on a Vista 15P and 40 zones on a Vista 20P.

Specifications:

Physical
5-5/16″H x 7-3/8″W x 1-3/16″D
(135mm x 190mm x 30mm)

Current
Standby-40mA
Activated Transmission-160mA

Wiring
– (Black): Ground
+ (Red): +12 VDC (Aux. Power)
D1 (Green): Data in? to control panel
D0 (Yellow): Data out from control panel

Compatibility
Fully compatible with all VISTA controls.

Features:

• 6160 Custom Alpha Keypad
• Built in 5881ENH unlimited zone wireless receiver
• Compatible with 5828/5828V wireless keypads on VISTA systems*
• Single four-wire run is all that?s required
• It is the ideal choice where wireless keys are to be used:
  – Keys can be programmed at the panel, just as they would with the 5881ENH
• Fully compatible with all 5800 wireless devices including bidirectional devices*
• The 5800TM Module needed to support the 5804BD and 5804BDV is already built-in
• Supports encrypted operation of the 5804E and 5804BDV four-summary keys

Easy to Operate

• The custom alpha display is easy to read, with large characters and simplified descriptions
• The sounder beeps to help identify security system status

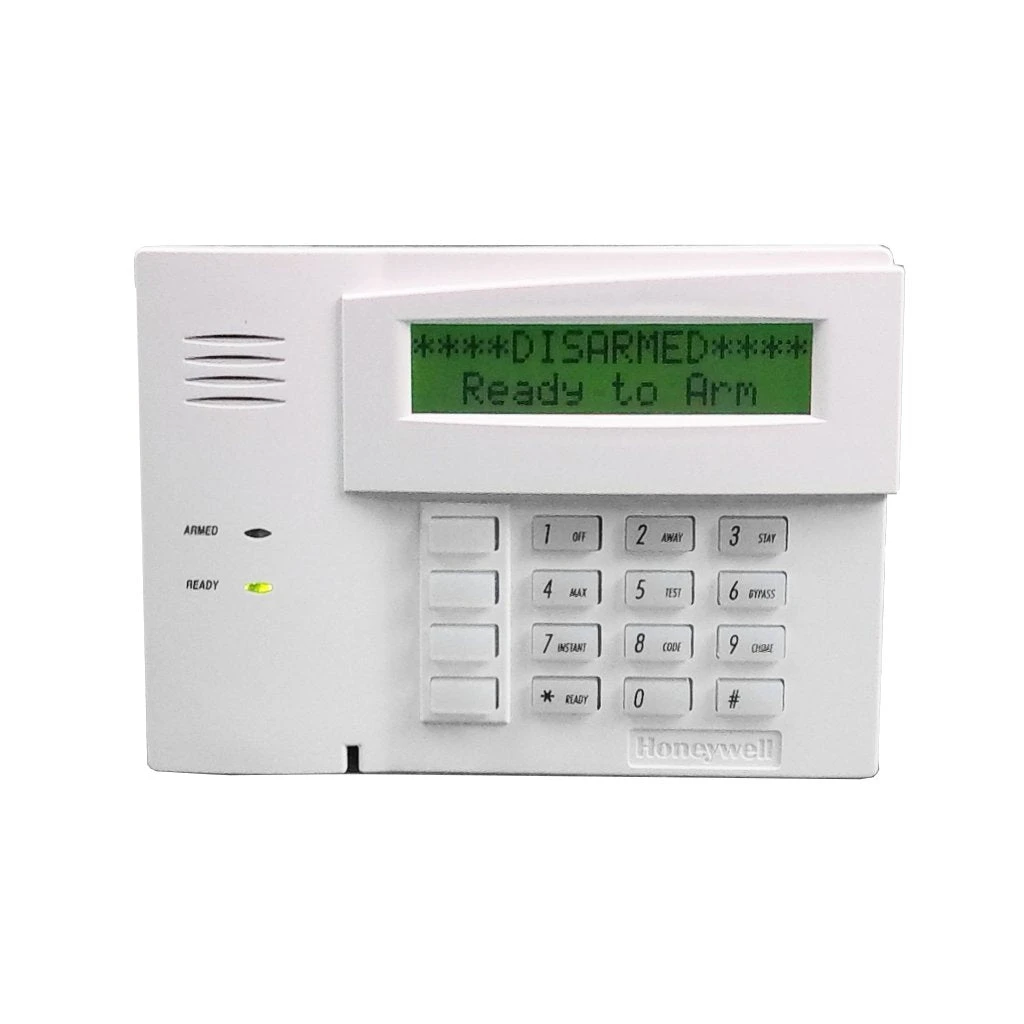

• Comfortable soft-touch keys labeled with simple commands are illuminated for nighttime visibility
• Four larger function keys can be programmed for one touch operation and are accessible even when the door is closed

Stylishly Designed

• Sleek, white design blends with any d?cor
• Contoured, removable door lets customers customize the keypad for the look they want
• With the door closed the keypad has a smooth, unobtrusive appearance

*Not compatible with 5839
