Honeywell 6160 Custom Alpha Security Keypad

Honeywell 6160 Custom Alpha Security Keypad

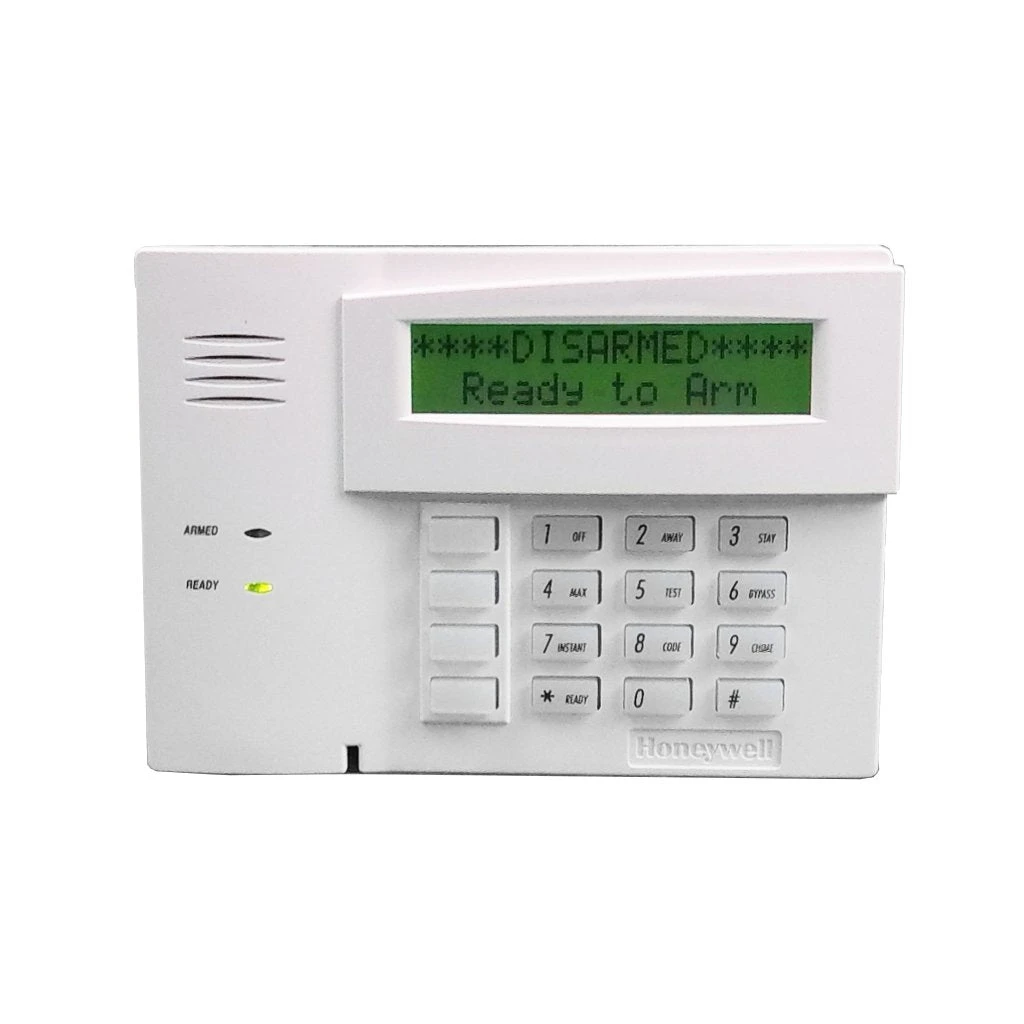

Ademco 6160 Easy to Read Alpha Display Keypad has a 32 character display with easy to read text that is spelled out in plain english. It features four oversized funtions keys which are accessible while the keypad door is closed.

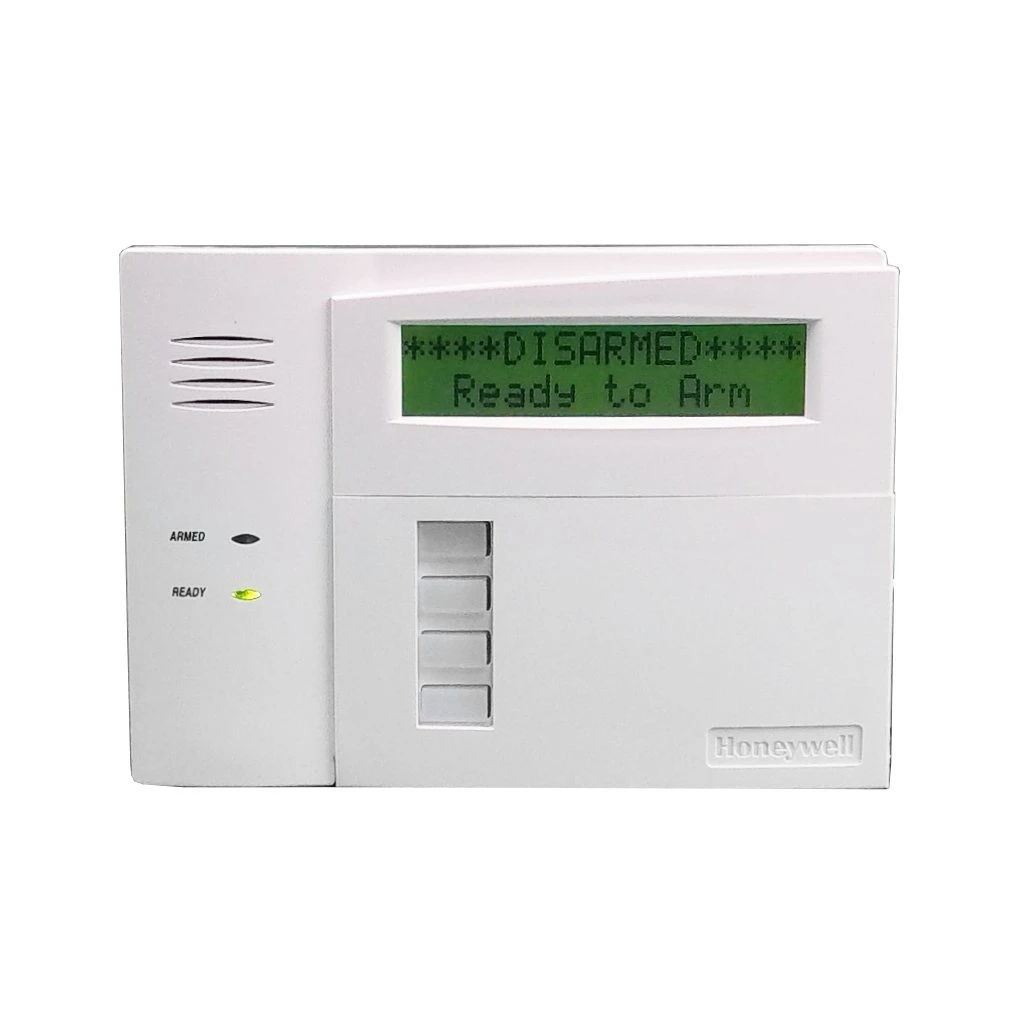

The four function keys on the left side of the keypad can be used for panic keys so that you may press these in case of an emergency such as a break in, fire or medical situation. The function keys are large, easily seen and accessible even when the front cover is closed.

Specifications:

Physical
5-5/16″H x 7-3/8″W x 1-3/16″D
(135mm x 190mm x 30mm)

Current
Standby-40mA
Activated Transmission-160mA

Wiring
– (Black): Ground
+ (Red): +12 VDC (Aux. Power)
D1 (Green): Data in to control panel
D0 (Yellow): Data out from control panel

Compatibility
Fully compatible with all VISTA controls.

Features:

• Large, easy-to-use keypad
• Keys continuously backlit for greater visibility
• Speaker with audible beeps to indicate:
  – System status
  – Entry/exit delay
  – Other alarm situations
• Zones and system events displayed in plain English
• No confusing blinking lights
• Four programmable function keys
• System functions clearly labeled
• Functions performed by just entering security code plus command
• White with removable door blends with any decor
