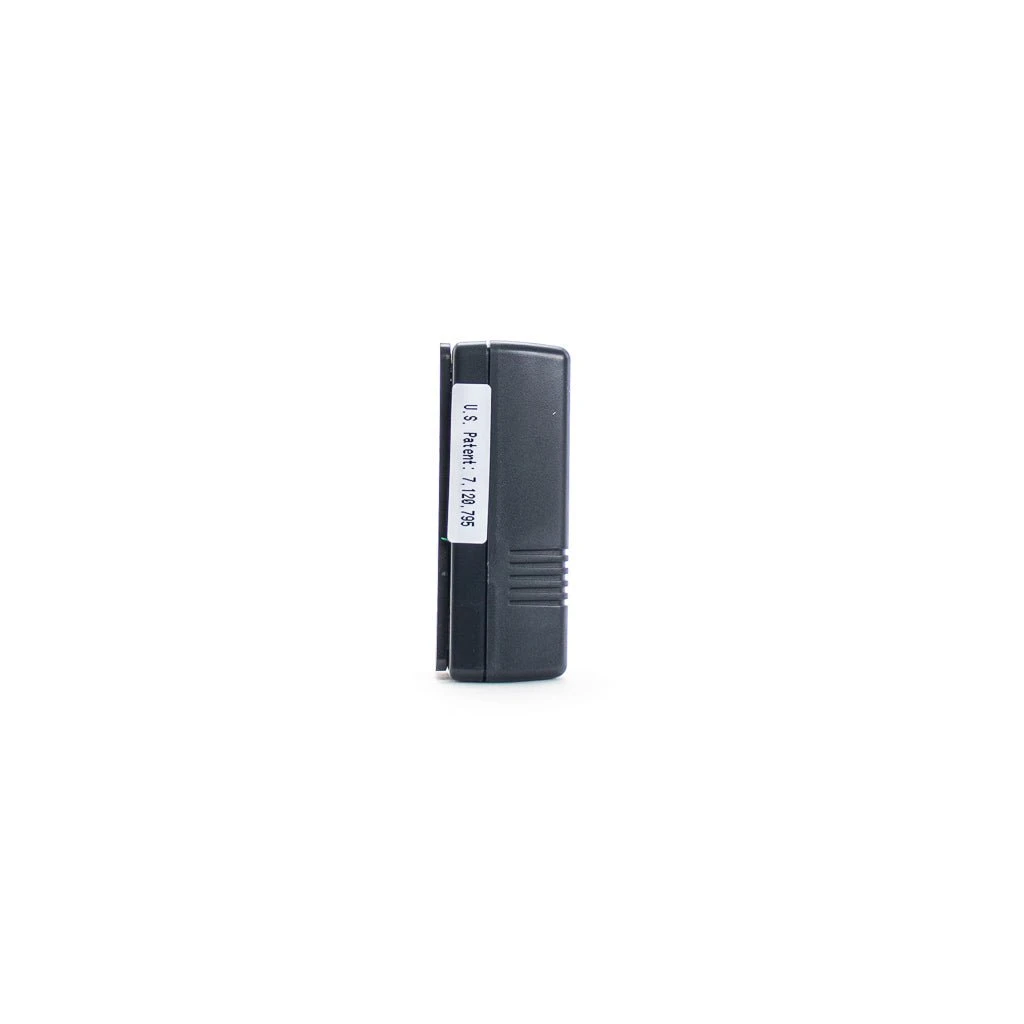

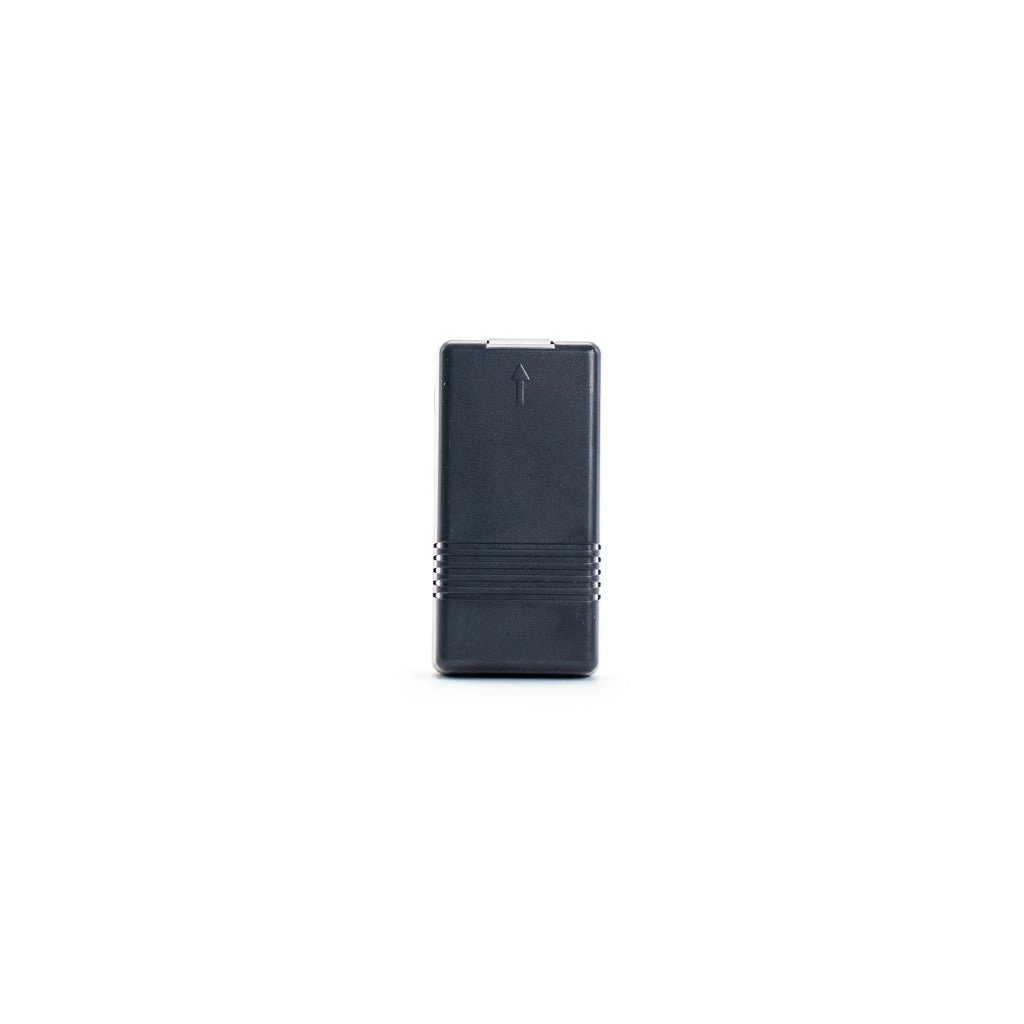

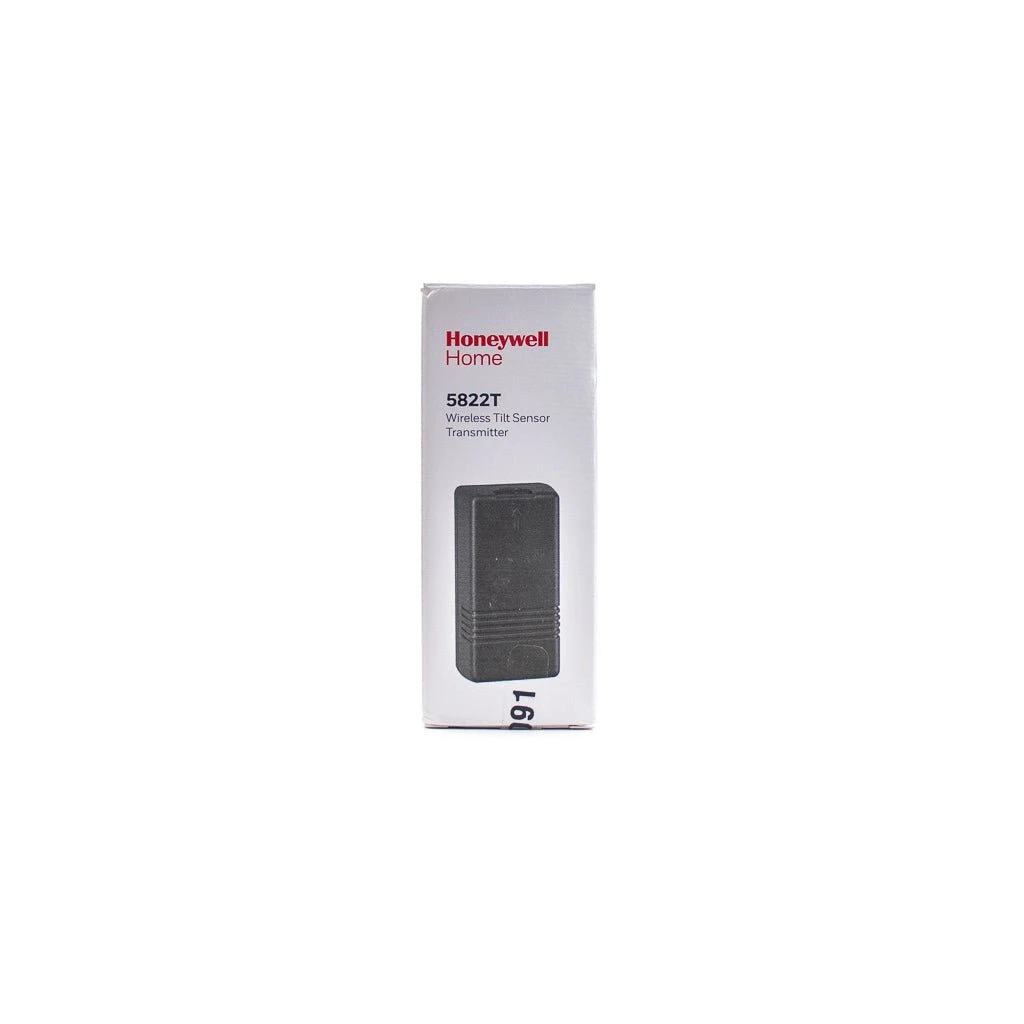

Honeywell 5822T Wireless Tilt Sensor Transmitter

Honeywell 5822T Wireless Tilt Sensor Transmitter

The Honeywell 5822T Wireless Tilt Sensor Transmitter is great for a garage door application. This sensor is installed vertically on a surface that tilts horizontally when opened like a garage door. The sensor cotains a mercury tilt switch that, when activated, will send a signal to the main control panel and cause an alarm condition if the system is armed or a fault condition if the system is disarmed.

The sensor can be programmed as a monitored or notification only zone. Includes cover tamper and battery supervision.

Specifications:

Battery (included)*:
1 x 3 V, Lithium
*Panasonic CR123A, Duracell DL123,
Duracell DL123A or Honeywell 466

Operating Temperature:
0 F to +131 F (-17 C to +55 C)

Relative Humidity:
95% max. (non-condensing)

Dimensions:
1-9/16″ W x 3-1/16″ H x 1-3/16″ D
(40 mm x 78 mm x 30 mm)

Compatibility:
Honeywell 5800 Series Wireless
Loop 1 terminals
Loop 3 tilt sensor
FCC part 15, Class B verified
IC, ICES-003, Class B verified

Features:

• Easy to install  use double sided tape or screws (included).
• Screws must be used in installations where temperatures can drop to 32 F (0?C) or below.
• Internal LED for easy programming
• Reliable 5800 Series Wireless
• Case tamper and battery supervision
