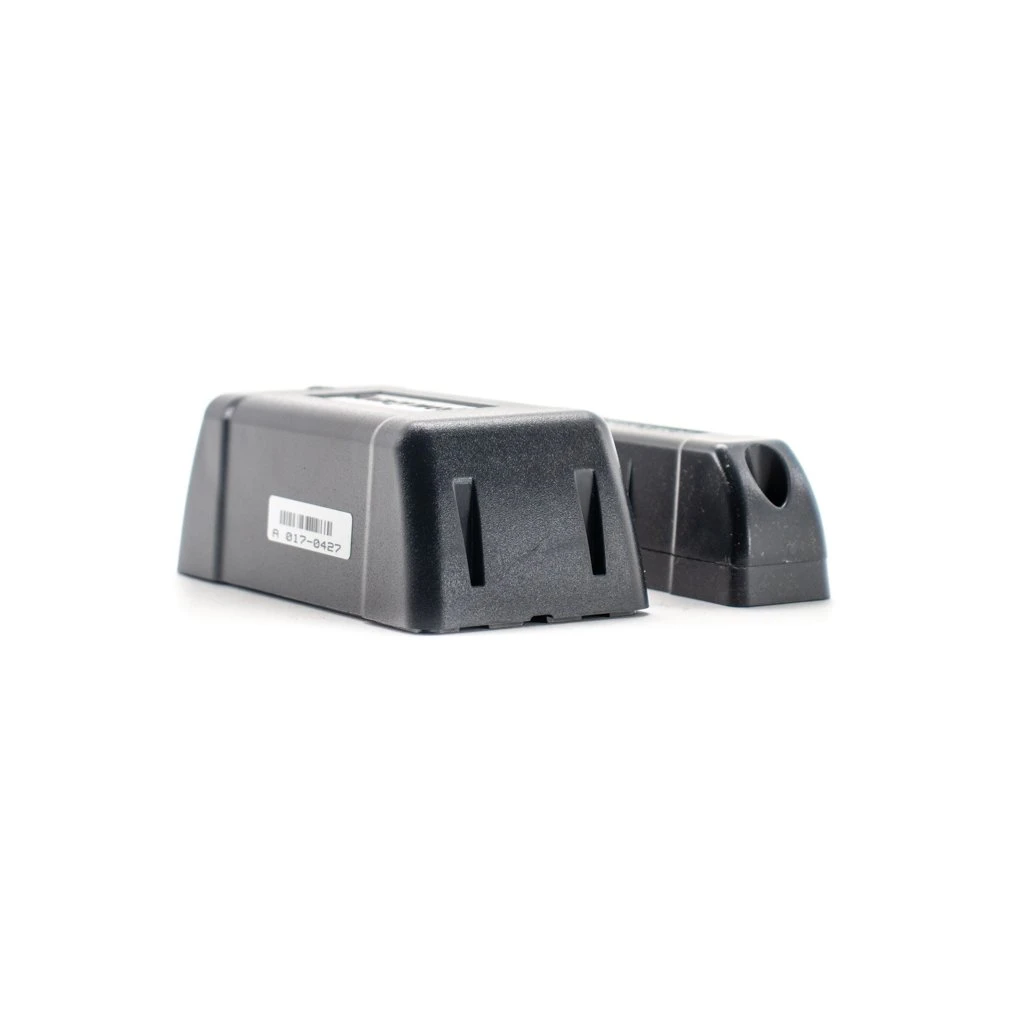

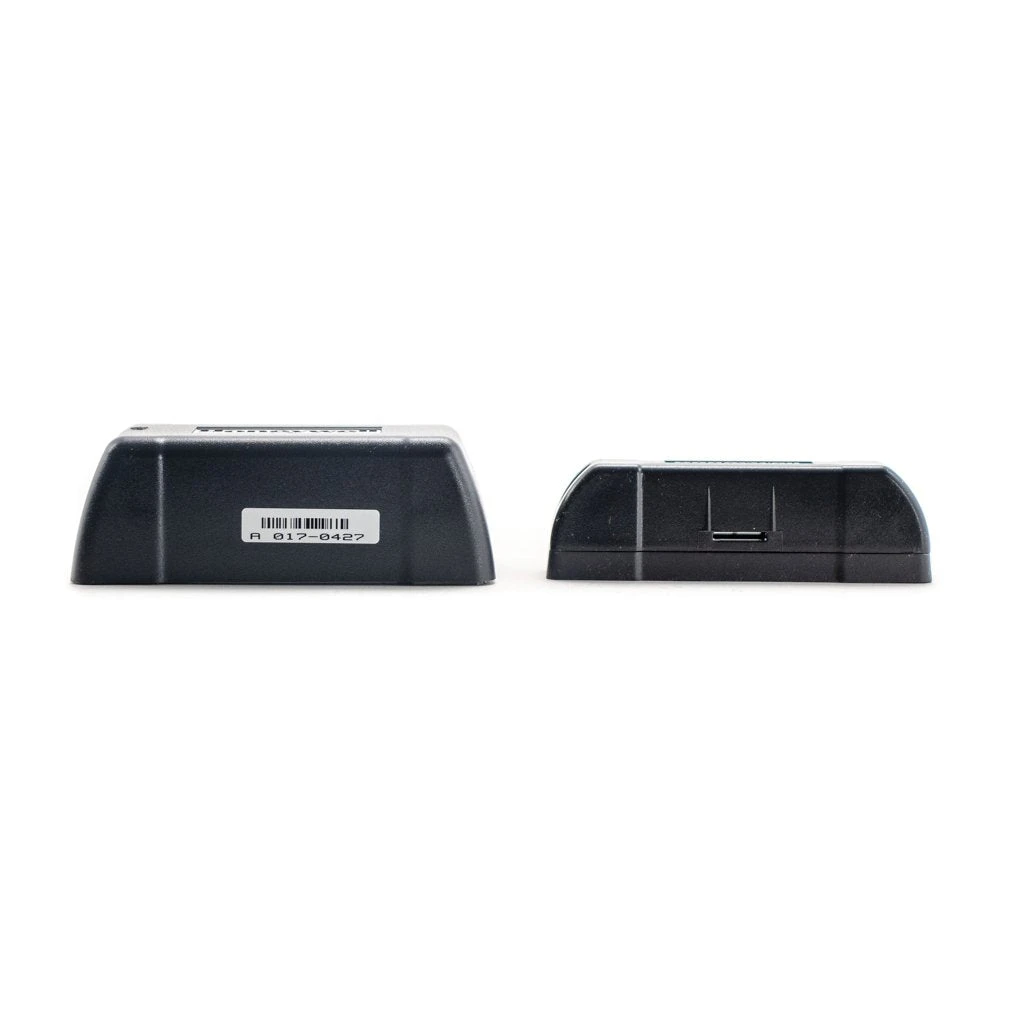

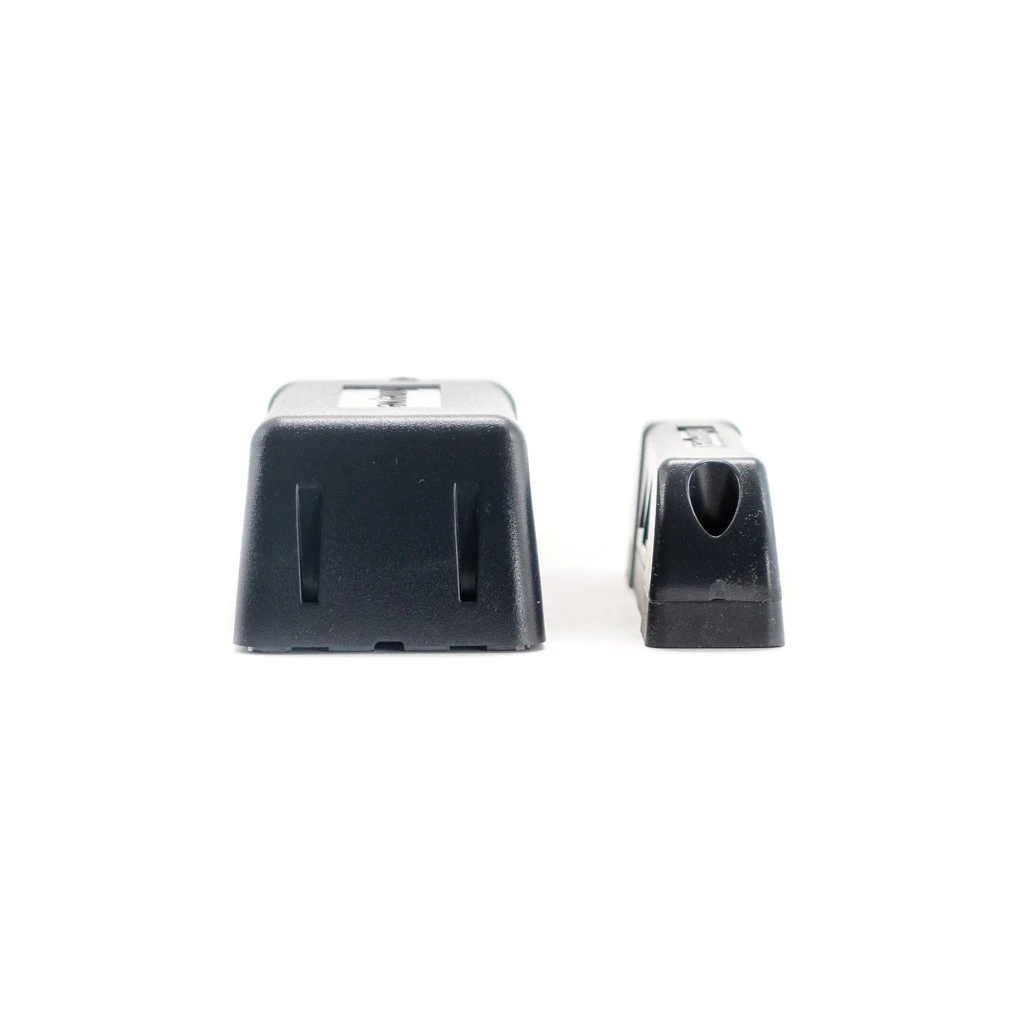

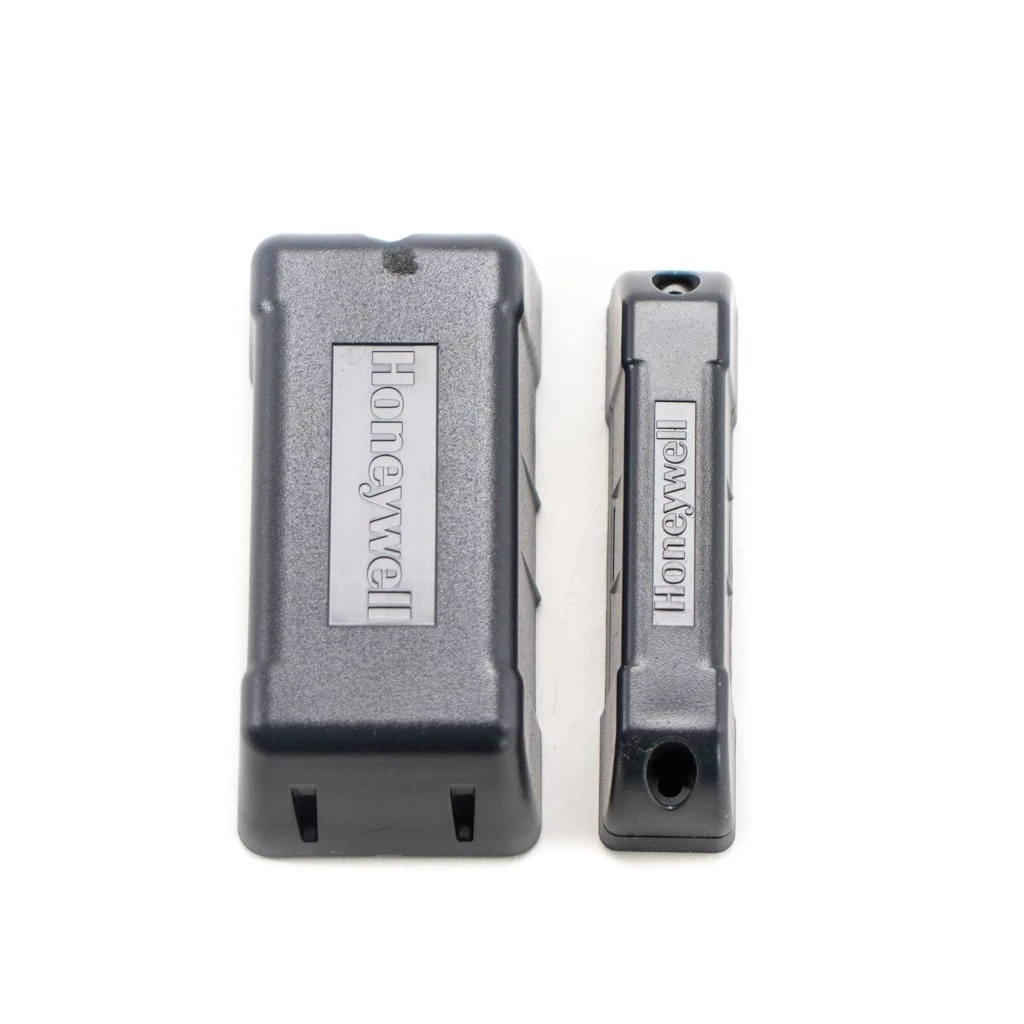

Honeywell 5816OD Wireless Outdoor Transmitter With Magnet

Honeywell 5816OD Wireless Outdoor Transmitter With Magnet

The Honeywell 5816OD is here!! This wireless transmitter was specially made for use in the outdoors and extreme temperatures.  It operates in temperatures from -40˚ F to 150˚ F (-40˚ C to +66˚ C). Just as the 5816WMWH; the 5816OD has two loops. One loop is for using the included magnet for applications that involve doors, gates, sheds, etc. The other loop is a hardwired contact loop. You can wire a NC two-wire type device into the internal terminals contained in the 5816OD’s housing. This wireless sensor is compatible with the Honeywell Vista 15P, Vista 20P and all Lynx Series.

Features:

• Weather-proof and water-resistant housing makes it ideal for harsh outdoor climates -40? F to 150? F (-40? C to +66? C), (100% RH)
• Maximum magnet gap 1.75″ on wood, vinyl and non-metallic surfaces and 1.25″ on steel to facilitate easier installation
• Two long life AA lithium batteries, easily replaceable
• Built-in reed switch contact loop
• Built-in wired closed contact loop (for use with external devices)
• Tamper protection-removal of front cover and transmitter from mounting plate
• Screw mountable
• Stainless steel or nylon cable tie mountable (ties not included)
• Magnet and magnet spacer included
• Paintable plastic housing to match any surface

5816OD Installation manual
5816OD FAQ
5816OD Data sheet
