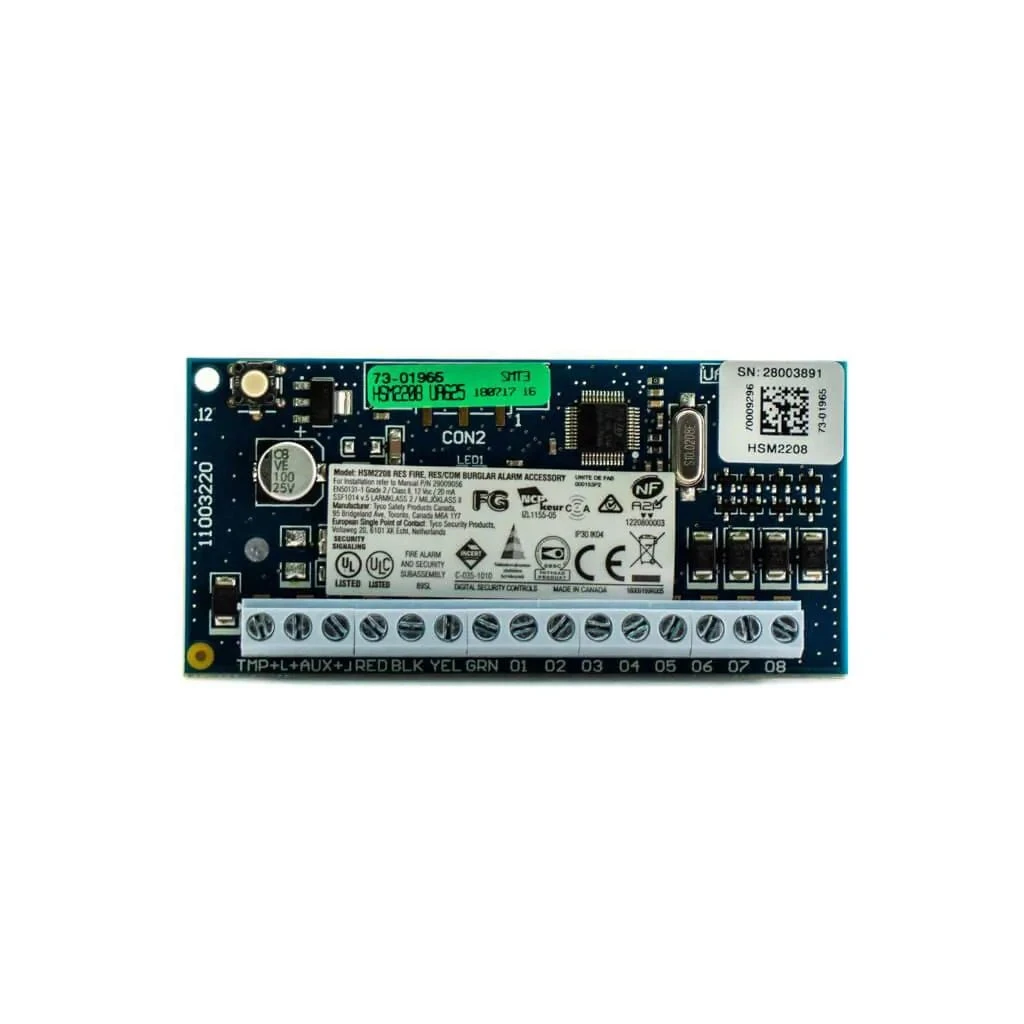

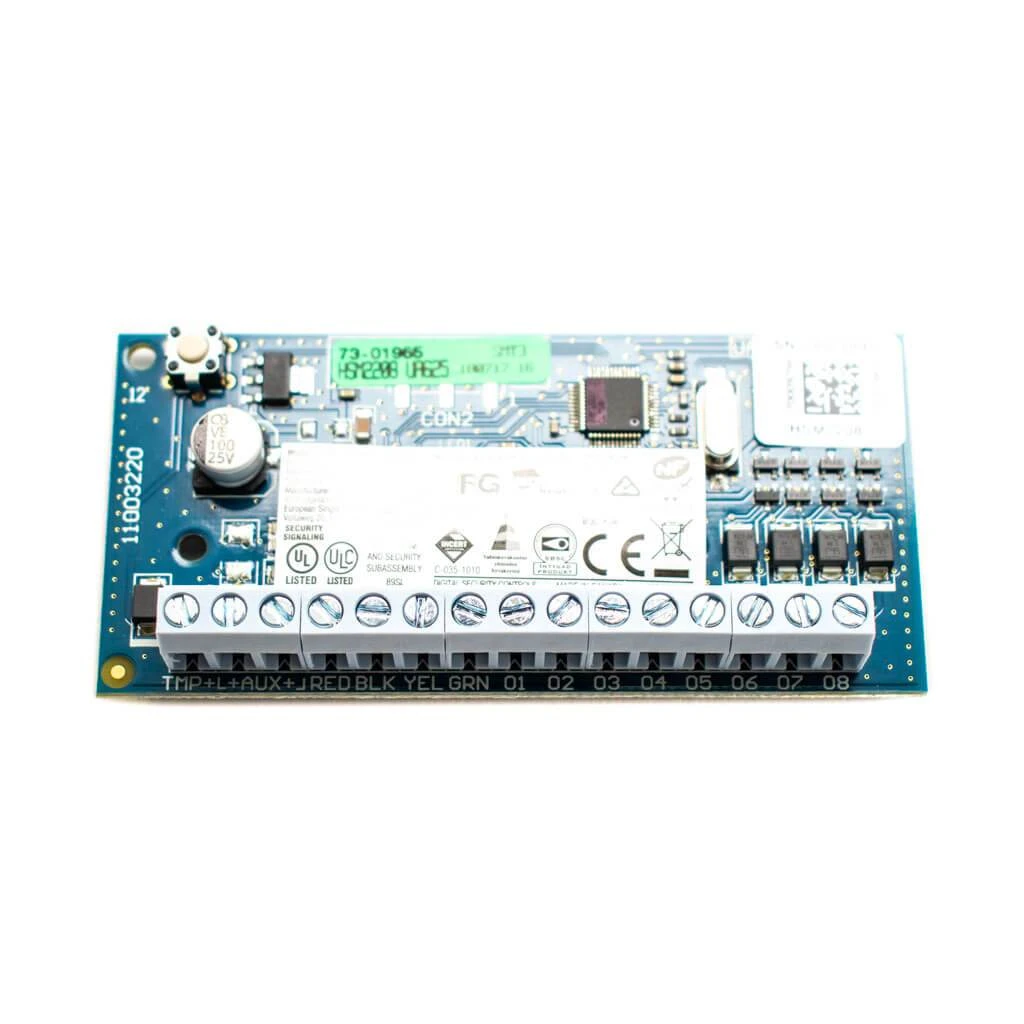

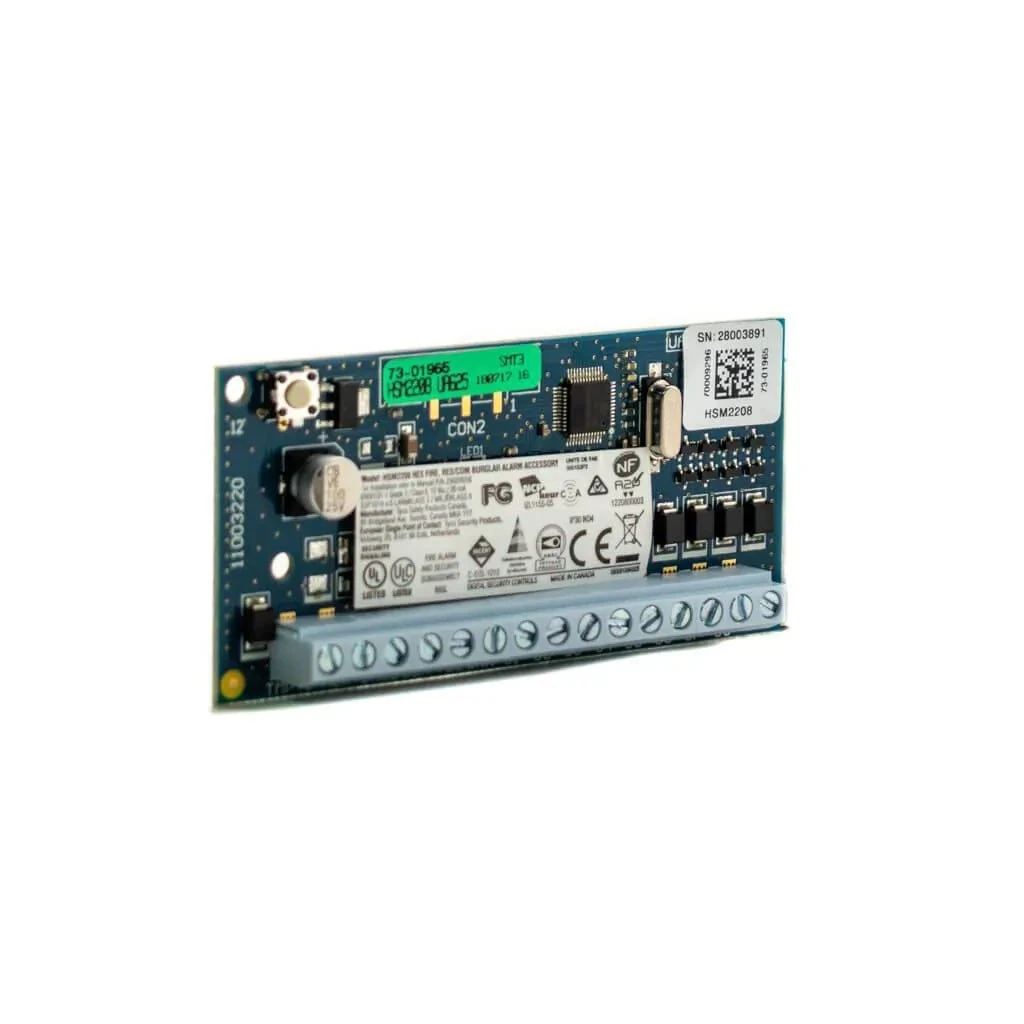

The HSM2208 module adds 8 low-current PGM outputs to your DSC NEO. Each PGM is capable of 50mA of output, typically used for activating sensitive relays to trigger external devices.
DSC PowerSeries NEO HSM2208 Low Current Output Module
The HSM2208 is a low current output module that can add up to 8 programmable outputs to your DSC NEO burglary system. Programmable outputs let you do anything from triggering extra sirens to supporting smoke/heat detectors. You can make the outputs do a variety of things and they are very versatile and useful. This is compatible with DSC NEO HS2016, HS2032, HS2064, and HS2128.
Specifications:
Temperature range: -10 C to 55 C (0 C to 49 C for UL/ULC listed systems)
Relative Humidity: 93% R.H. non-condensing
Input rating: EU: 10.8 to 12.5VDC/700mA (includes 250mA AUX maximum plus 50mA for each of the 8 outputs) The maximum loading is shared with the compatible alarm panel or power supply AUX output.
Board current draw: 60mA (set and unset state/alarm and non-alarm state)
Board dimensions: 45mm x 92mm
AUX output ratings: 10.8 to 12.5VDC, -15%/+15% when Input voltage is between 85% to 110% of rated value and output current is between 0mA – 250mA max.
PGM outputs: Open collector, switched to ground, 50mA max
Resettable fuse (PTC used on circuit board instead of replaceable fuses. There are no serviceable parts
Maximum wire length from alarm panel 1000’/305m
DSC HSM2208 Installation manual
DSC HSM2208 Specifications sheet
Provides 8 low current (50 mA) programmable outputs
