DSC PG9936 PowerG Wireless Smoke And Heat Detector

The PG9936 is a standard wireless smoke and heat detector with a 135-degree heat limit. This model also features a built-in sounder in the event that the siren cannot be heard. Both the smoke and heat must be active at all times.

---

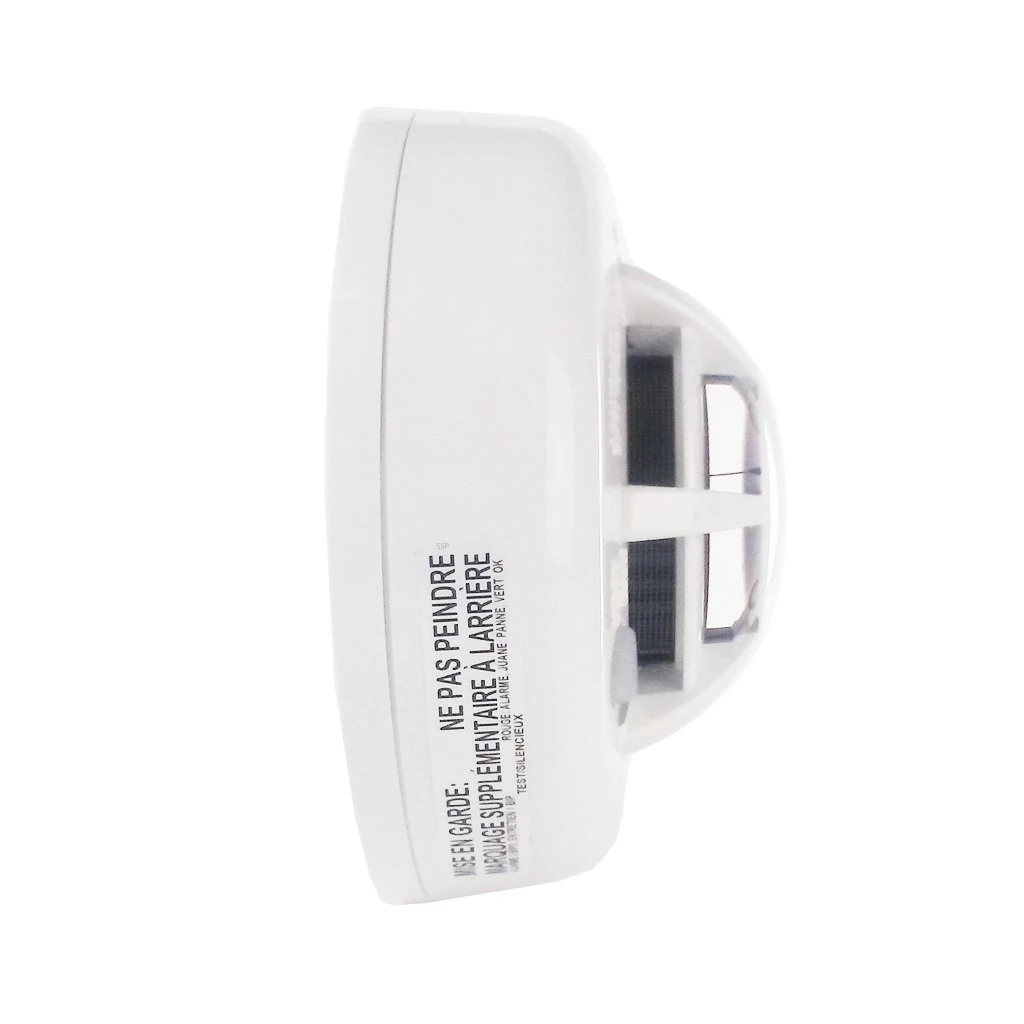

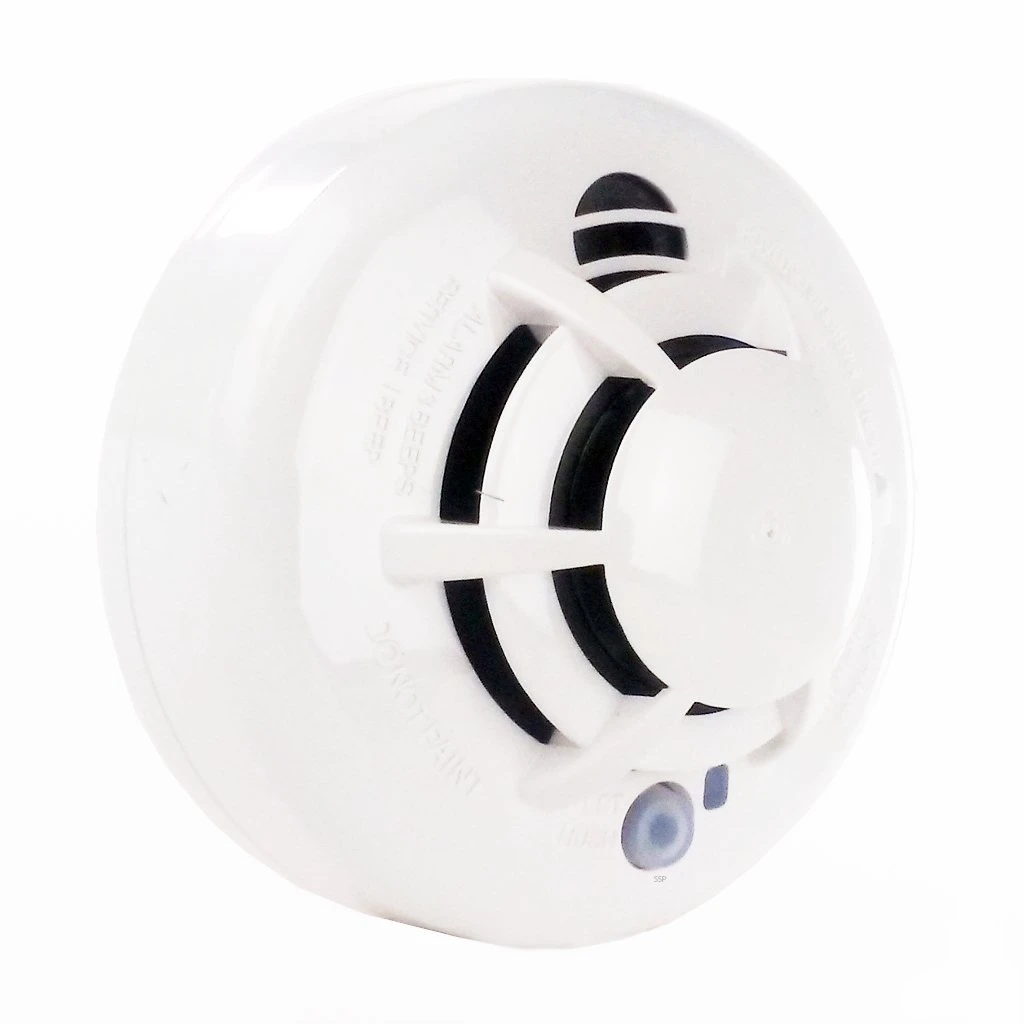

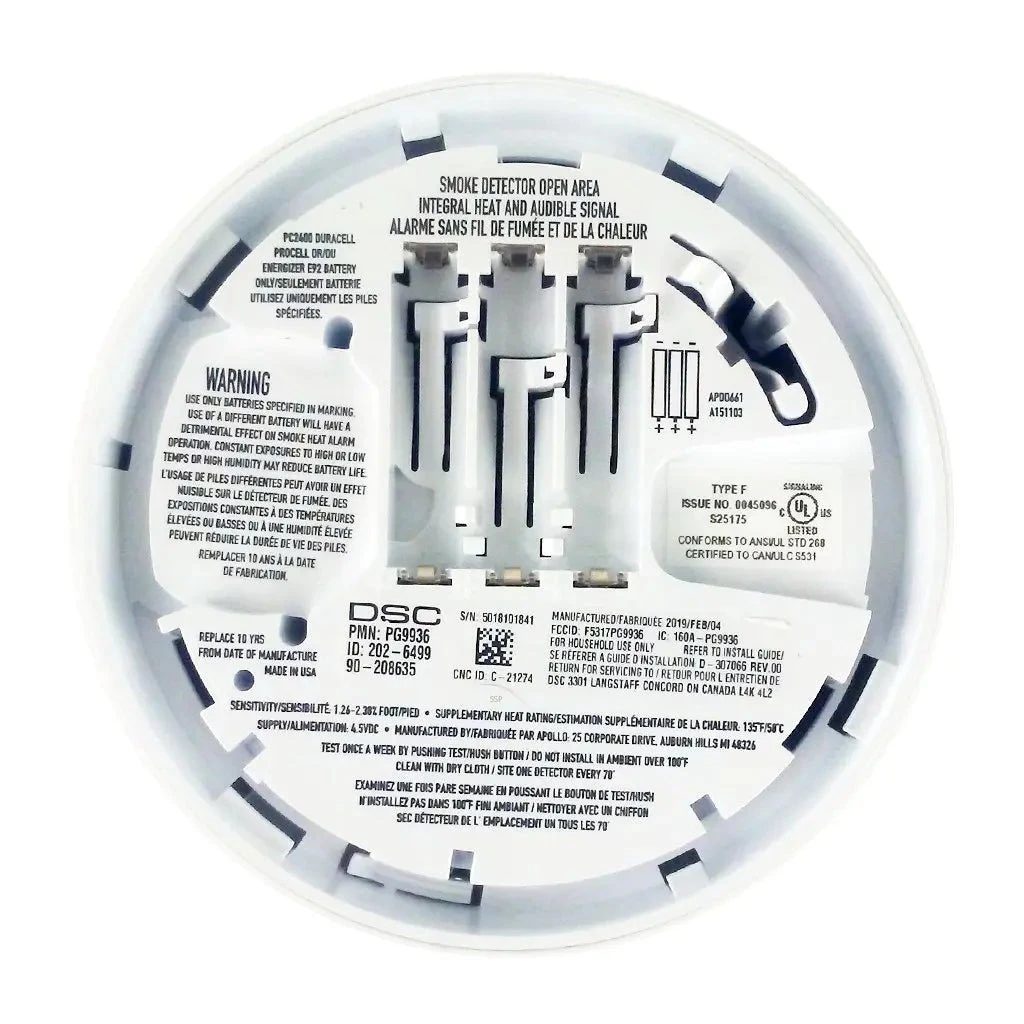

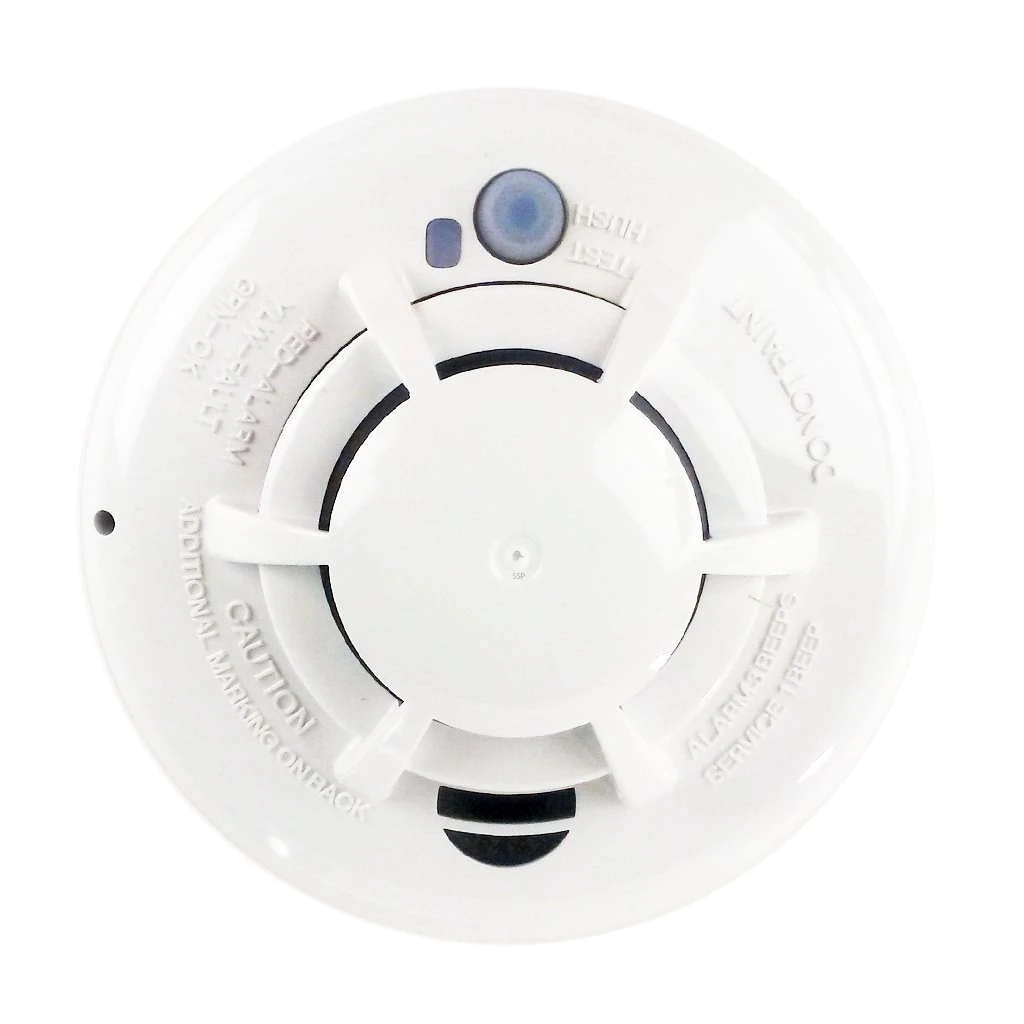

DSC PG9936 PowerG Wireless Smoke and Heat Detector

The DSC PG9936 is a wireless PowerG smoke and heat detector that can be used with the DSC PowerSeries NEO systems as well as the Qolsys IQ Panel 4 systems.

The PG9936 works on the 915 MHz frequency, can be mounted on a wall or ceiling, and comes with the hardware to do so. Just like every PowerG device; the PG9936 features multi-channel frequency hopping to help prevent frequency blocking and interference. It also uses 128-bit AES encryption to provide protection against analysis tools and digital attacks. Another preventive measure this contains is a back tamper in case someone tries to remove it from its mounting position. The PG9936 uses 3 AAA batteries for power which will last an average of 3 years and measures in at 5 x 2.5 in.

This smoke/heat detector makes installation easier because of the built-in link quality indicator located on the device itself. To help ensure everyone in the area is notified of a fire; the PG9936 features an onboard sounder and a visual indicator. The unit will also send device tampered and low battery conditions to the main alarm. Because of the technology behind the PG9936; this will provide reliable monitoring and early detection of fire conditions.

PG9936 Installation Guide

Specifications:

Dimensions – 125 x 63mm (5 x 2.5in)
Battery Life – 3 years (typical use)
Battery Type – 3 AAA batteries (included)
Weight – 243g (8.75oz)
Operating Temperature – 4.4°C to 37.8°C (40°F to 100°F)
Operating Environment – Indoors
