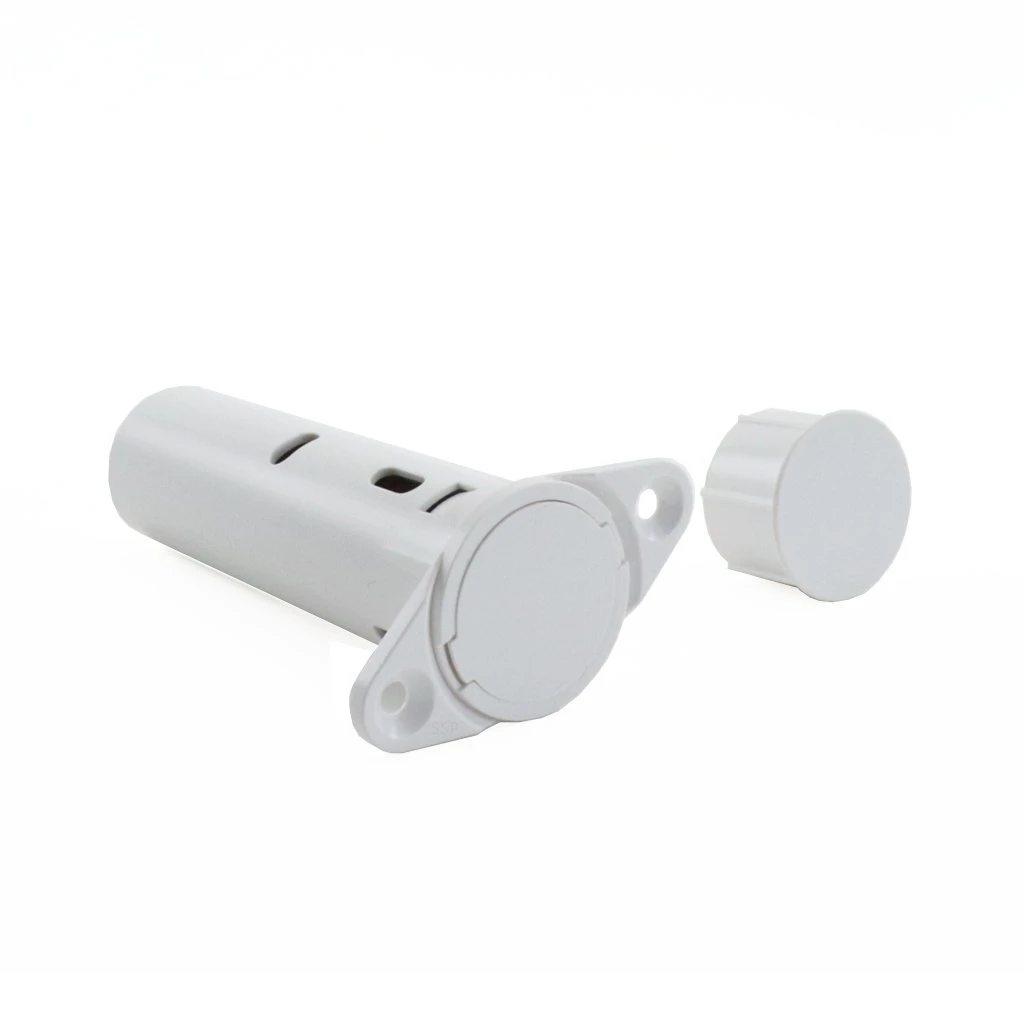

DSC PG9307 Wireless Recessed Door & Window PowerG Alarm Contact

The PG9307 is the only recessed door/window sensor for PowerG. Very effective and easy to hide, this sensor will require a 3/4in drilled hole in the door or window frame. This model comes in 2 varieties: Translucent or White.

---

DSC PG9307 Wireless Recessed Door & Window PowerG Alarm Contact

The DSC PG9307 is a recessed wireless transmitter that can be used on doors or windows. This is a PowerG wireless device and works with the DSC PowerSeries NEO or any other alarm system that can handle the PowerG wireless devices such as the Qolsys IQ Panel 4.

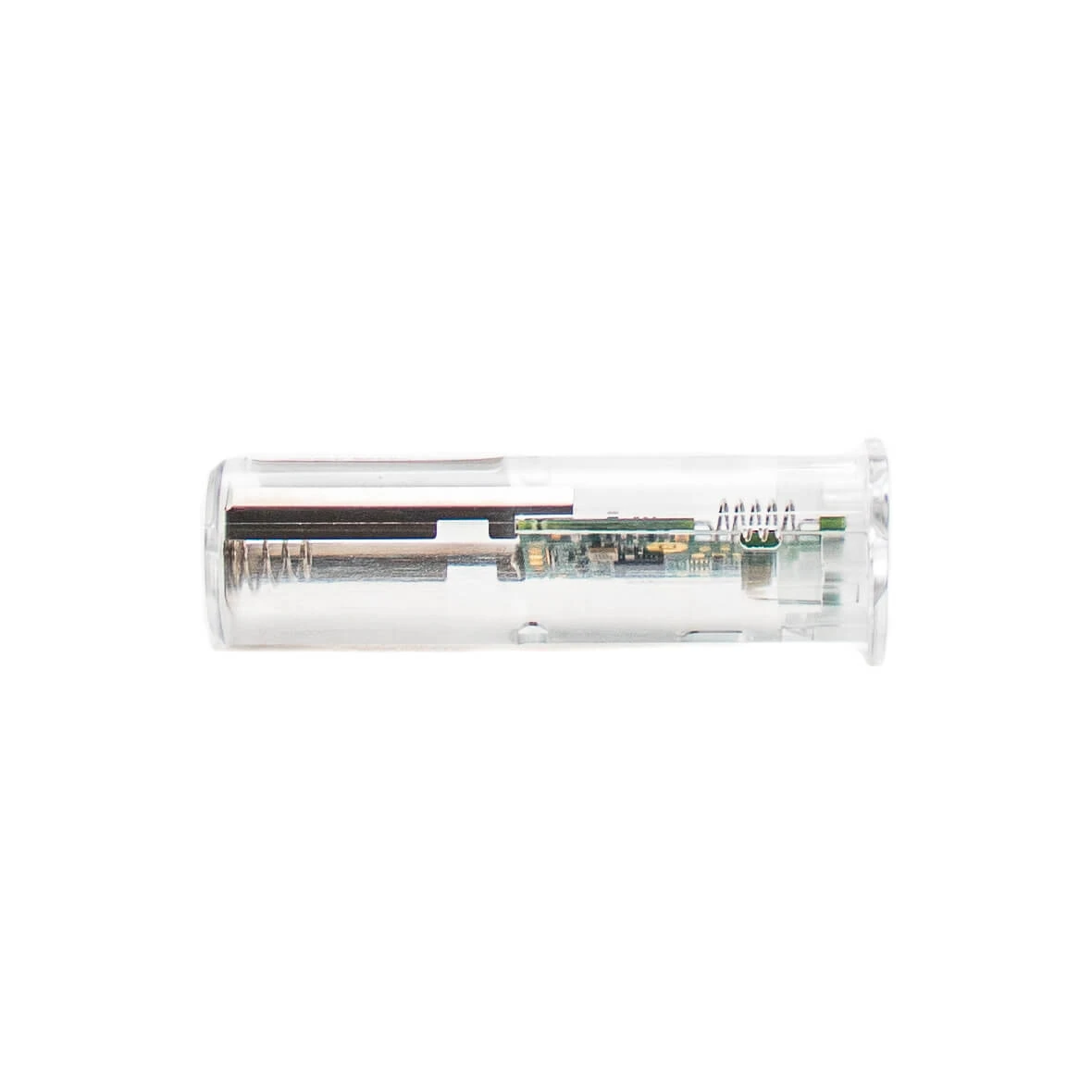

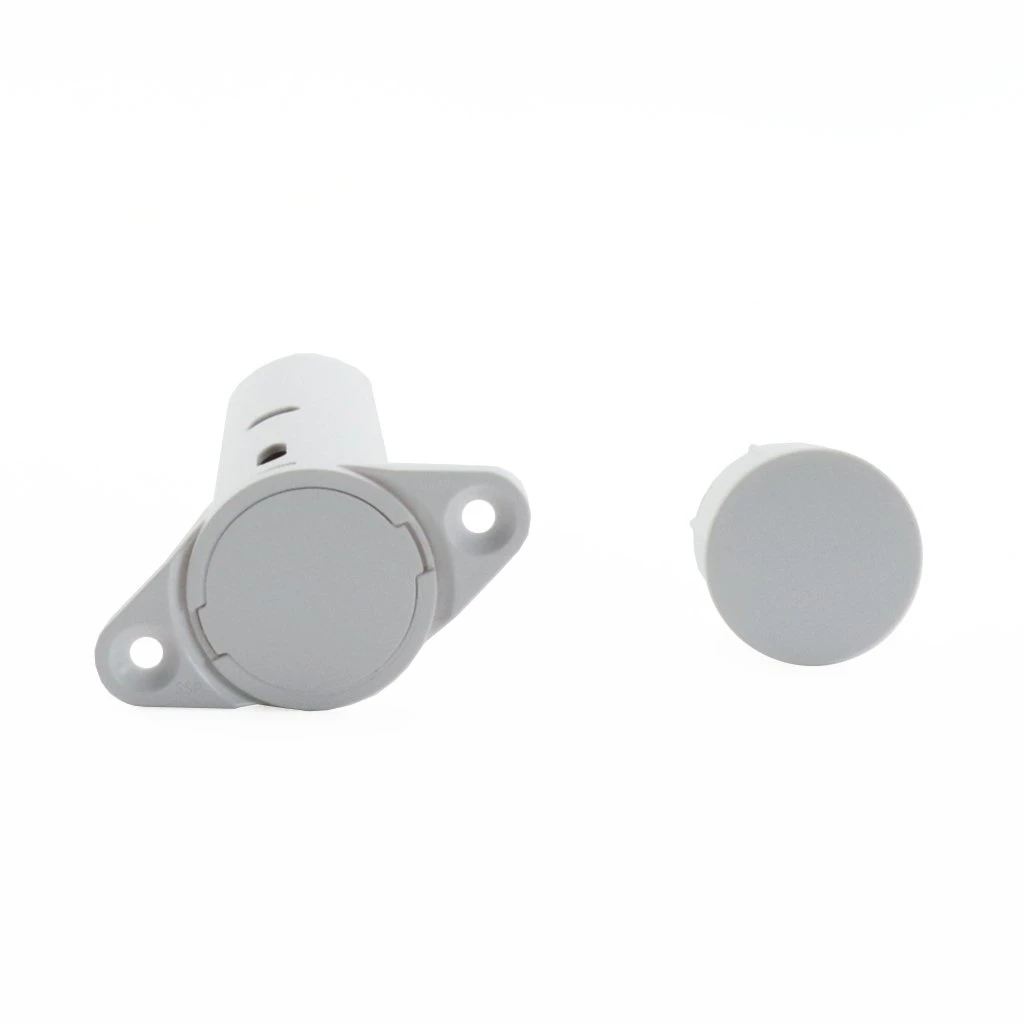

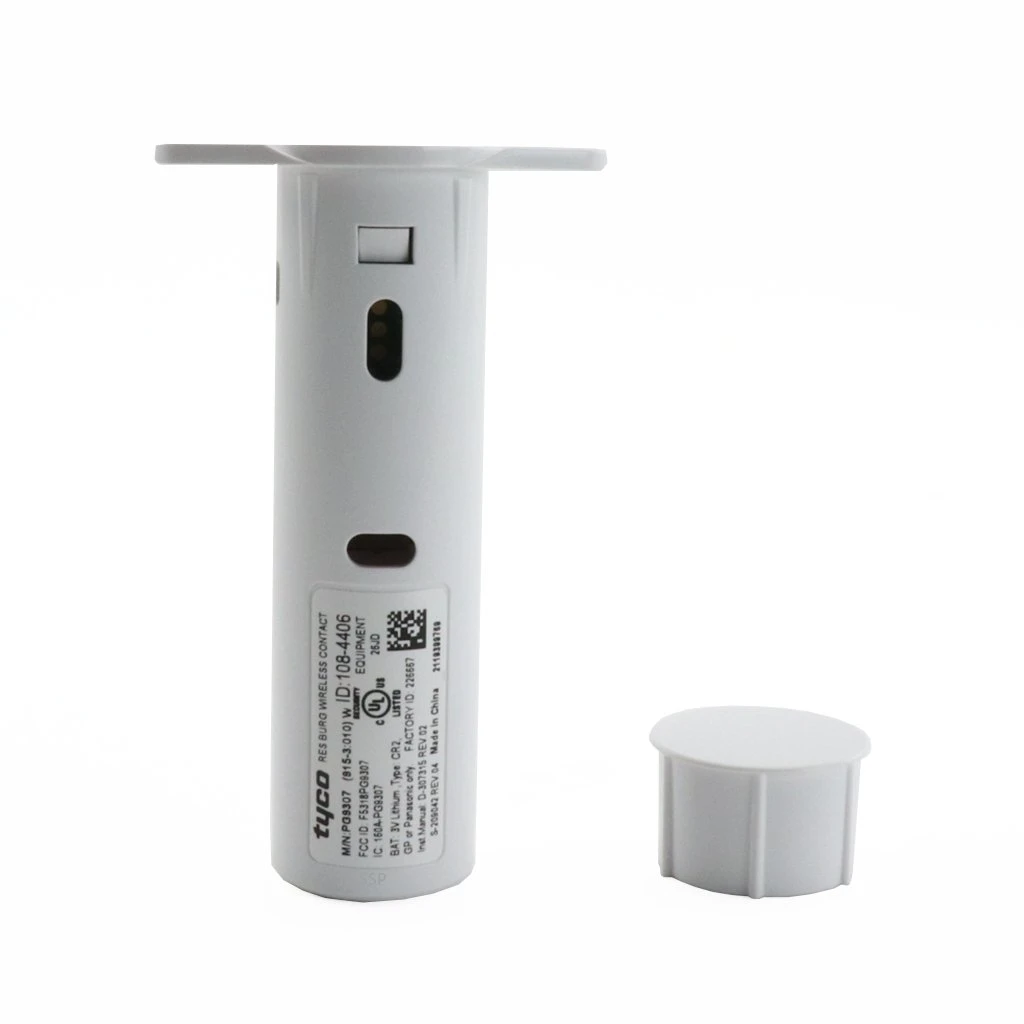

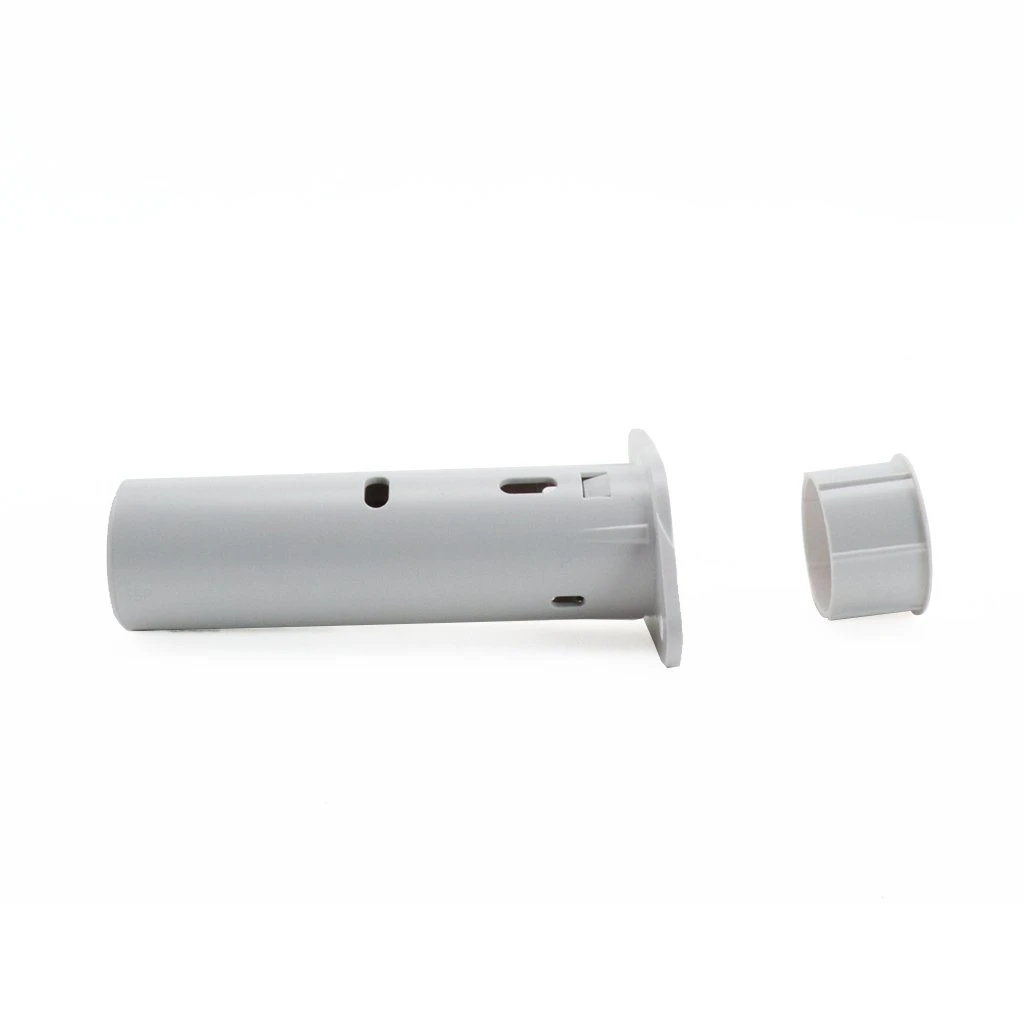

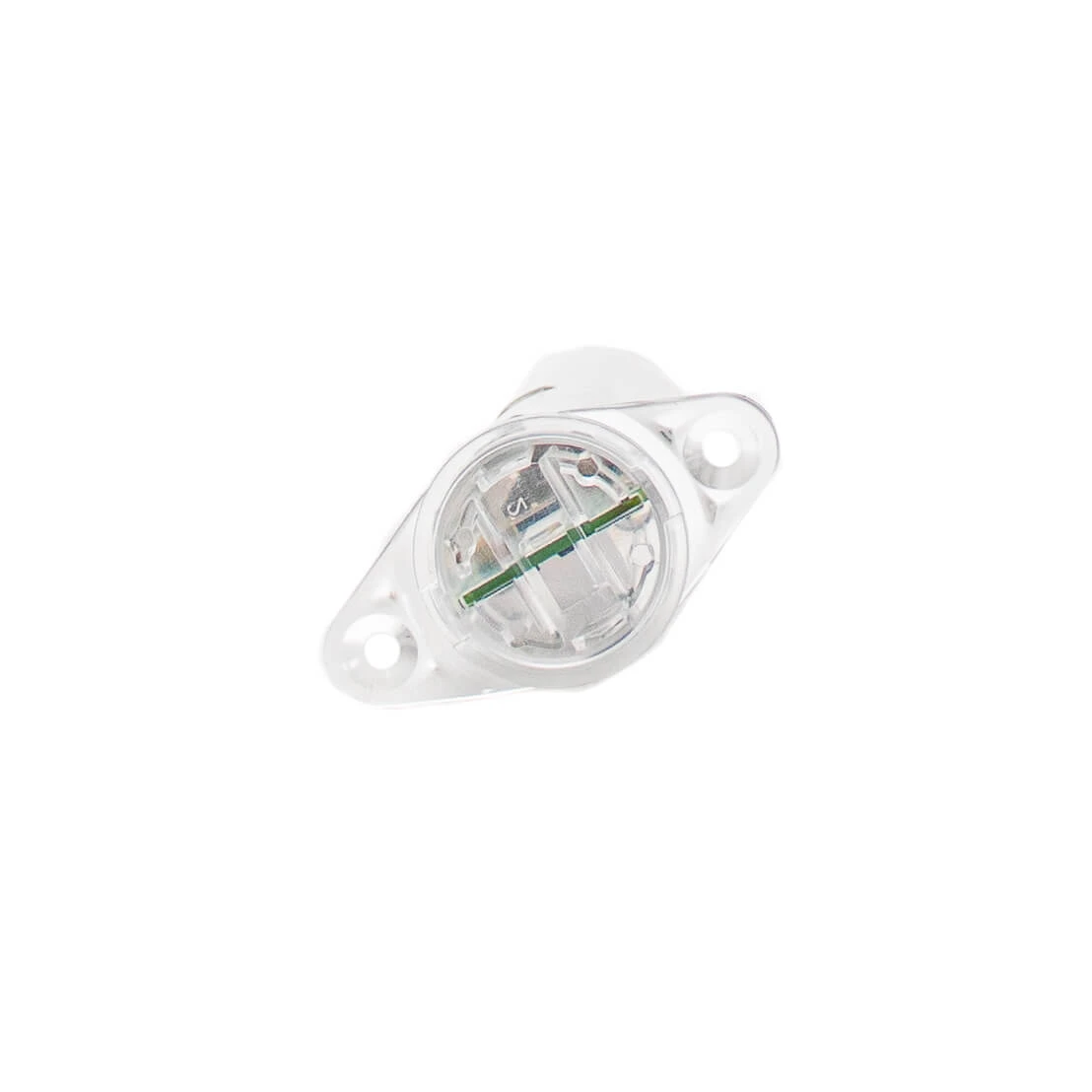

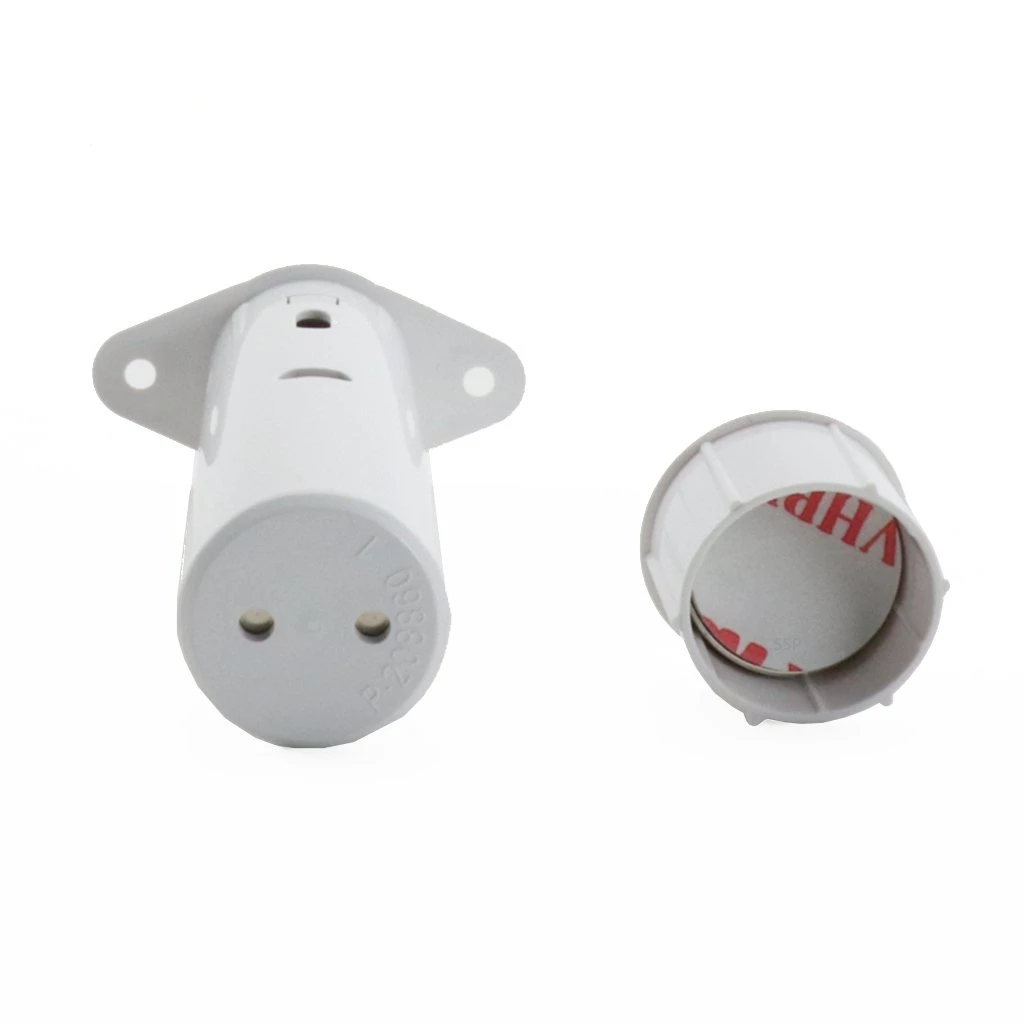

The PG9307 provides out-of-sight, secure protection because of its recessed installation. This recessed transmitter comes with options of an opaque white case or a clear case. Because of its PowerG wireless technology, the PG9307’s battery will last from 6-8 years before you have to replace it. Also, because of the technology behind this device, you will get up to a half-mile radius out from the transceiver for placement and installation.

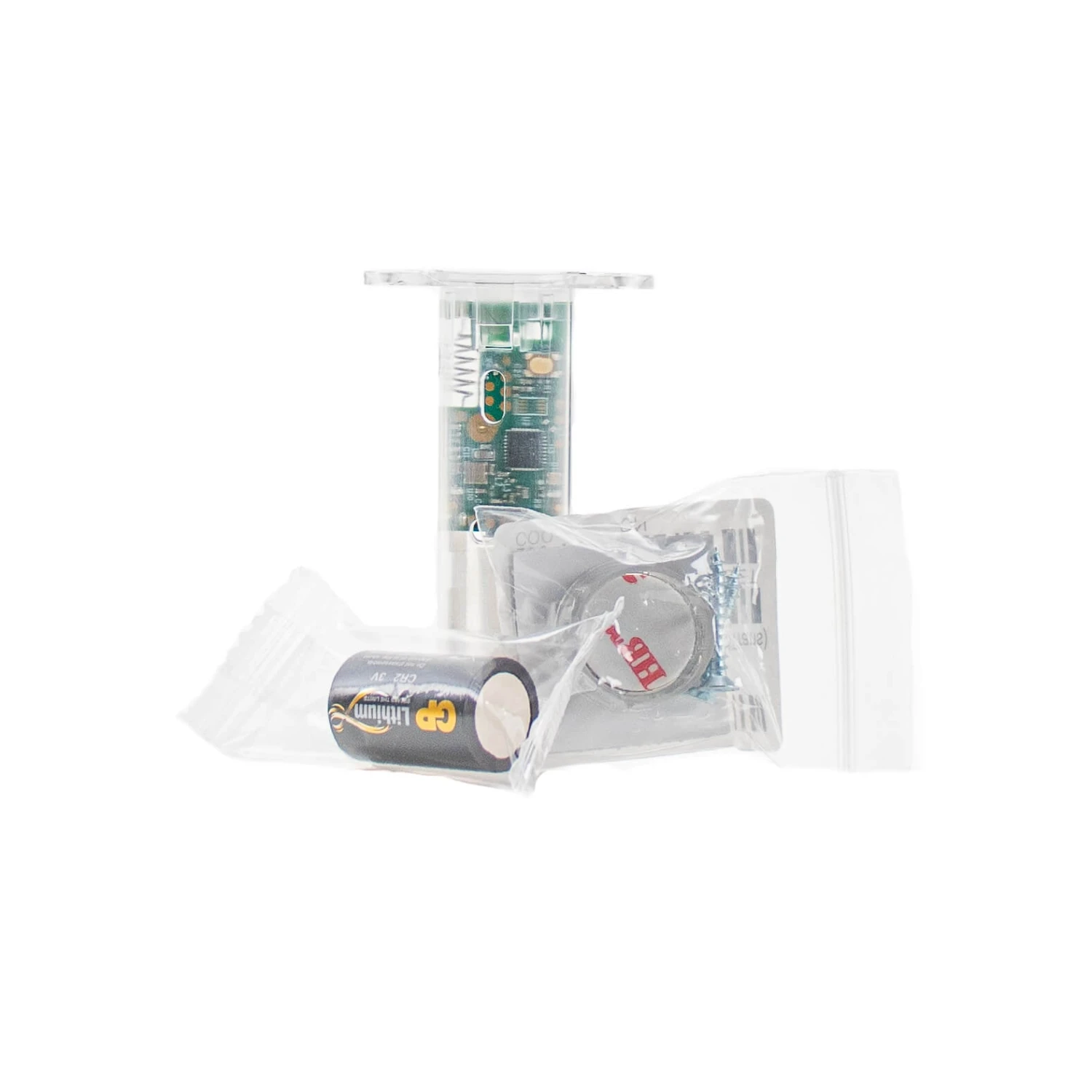

The PG9307 measures 2.66 in. long and has a 3/4 in. diameter. The batteries used in this transmitter are CR-2 lithium batteries. This can be used in areas that have temperature ranges of 14°F to 122°F. It may not operate correctly outside of this temperature range.

Installation Manual
Data Sheet

Specifications:

Battery type – 3V CR-2 lithium battery
Battery life – Up to 10 years (with typical use)
Weight (including battery) – 25 g (0.83 oz)
Operating temperature – -10°C to 50°C (14°F to 122°F)
Contact size (HxD) – 67.5 x 19.05mm (2.66 x 0.75in)
Magnet cover size (HxD) – 12.6 x 19.05mm (0.51 x 0.75in)
Magnet size (HxD) – 17.01 x 2.03mm (0.67 x 0.08in)
