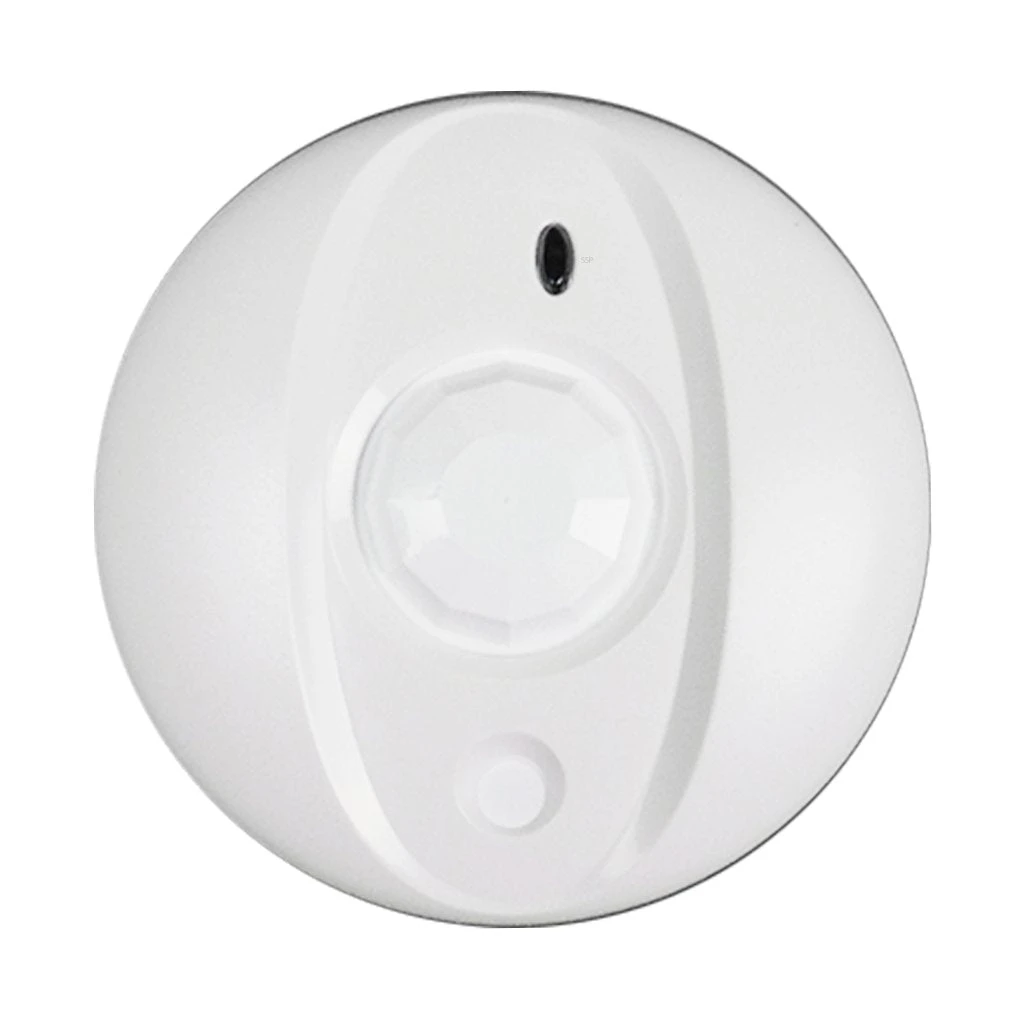

DSC BV500 Bravo 5 Ceiling Mounted 360 Degree Motion Detector

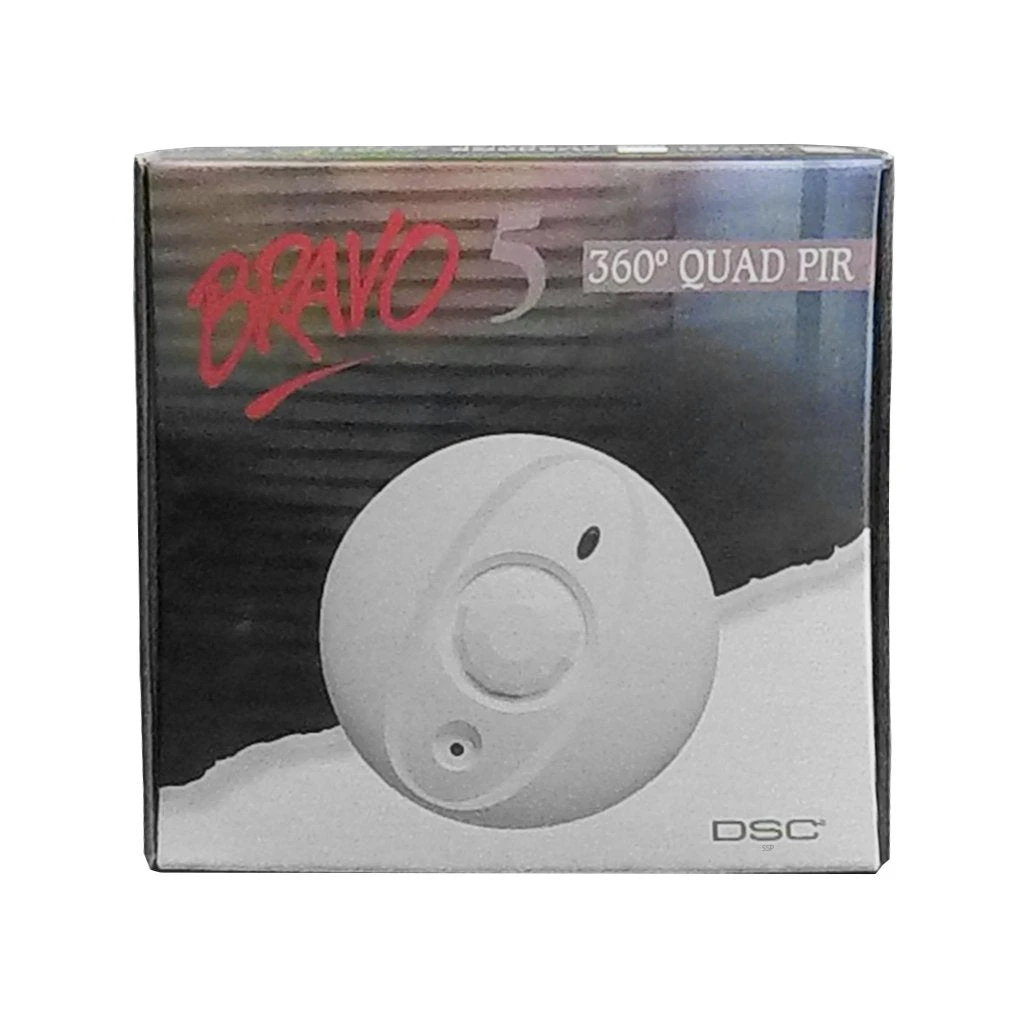

DSC BV500 Bravo 5 Ceiling Mounted 360 Degree Motion Detector - Image 2

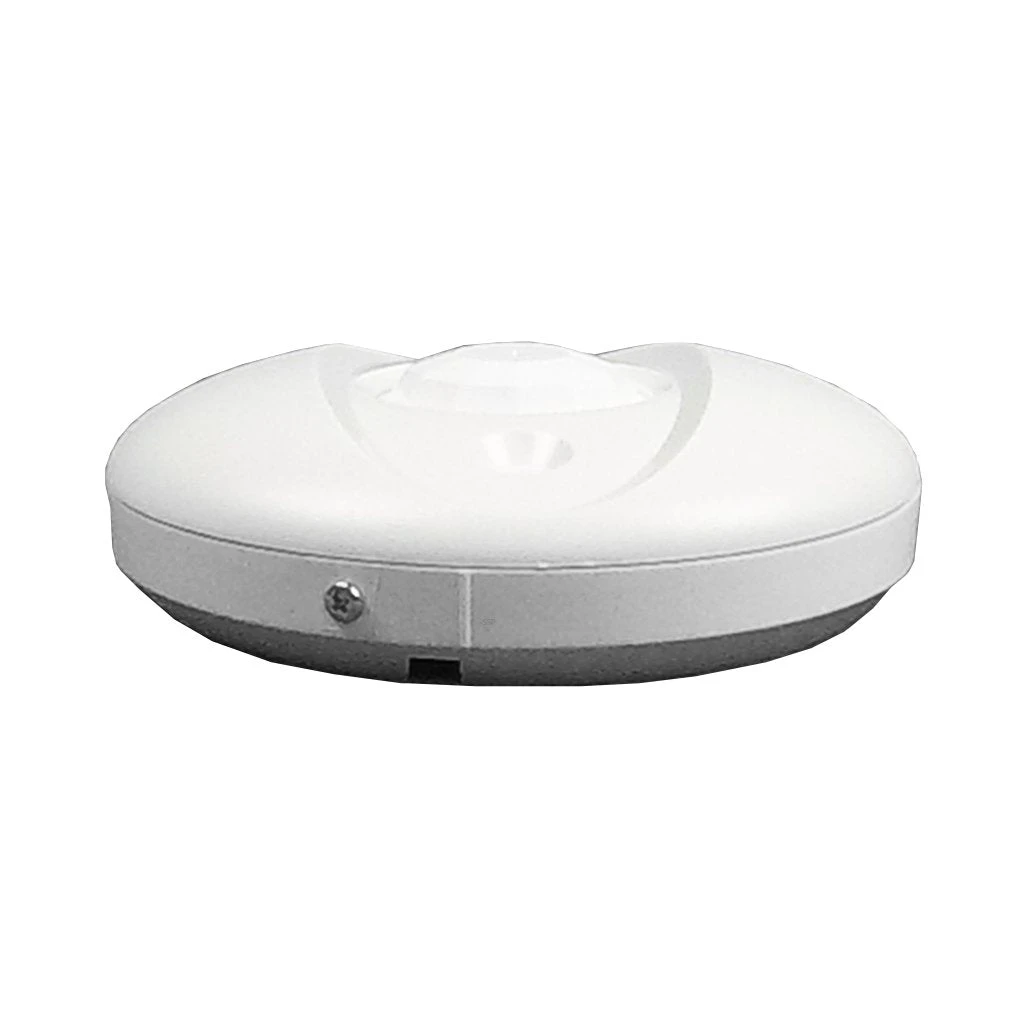

DSC BV500 Bravo 5 Ceiling Mounted 360 Degree Motion Detector - Image 3

DSC BV500 Bravo 5 Ceiling Mounted 360 Degree Motion Detector

Original price was: $52.95.Current price is: $37.07.

SKU: YWXHC 7037332101 Categories: Alarm Parts & Accessories, Hardwired Sensors Detectors Tags: BV500, Hardwired Sensors, Motion Detectors

Your needs, our top priority.
Efficient and effective customer service, online.
Streamlined service, designed for your convenience.
Green products, guaranteed.

Description
Reviews (0)

DSC BV500 Bravo 5 Ceiling Mounted 360 Degree Motion Detector

DSC’s Bravo 5 is a standard passive infrared motion that is ceiling mounted and offers a 360 degree detection pattern. False alarm immunity against RF, static and electrical transient. Ceiling must be flat in order to provide proper detection pattern. Detection pattern varies accoring to ceiling height. Maximum 12 ft. ceiling height mounting

Specifications:

Electrical
Input Voltage	9 – 14.5 VDC
Current (nominal)	18 /15 mA (alarm on/off) @12 VDC
Contact Rating
Alarm Relay	0.1A @24VDC
Tamper Switch	0.1A @24VDC
Size (diameter x height)	4.6″ x 1.4″ / 117 mm x 36 mm
Operation
Maximum detection range (diameter)	Detector placed 8 ft./ 2.4 m from floor: 24 ft./ 7.3 m Detector placed 10 ft./ 3.0 m from floor: 30 ft./ 9.2 m Detector placed 12 ft./ 3.6 m from floor: 40 ft./ 12.2 m
Additional operating modes	LED ON/OFF Jumper J1 Pulse count (fast/slow) Jumper J2, J2 ON is fast count.
Environmental/Immunity
RF Immunity	20V/m ( 100Hz – 1.2GHz)
Transients @ wiring terminal	2.4KV @ 1.2joules
Operating temperature	32 -122°F / 0 – 50°C
Humidity	5 – 95% RH non-condensing
