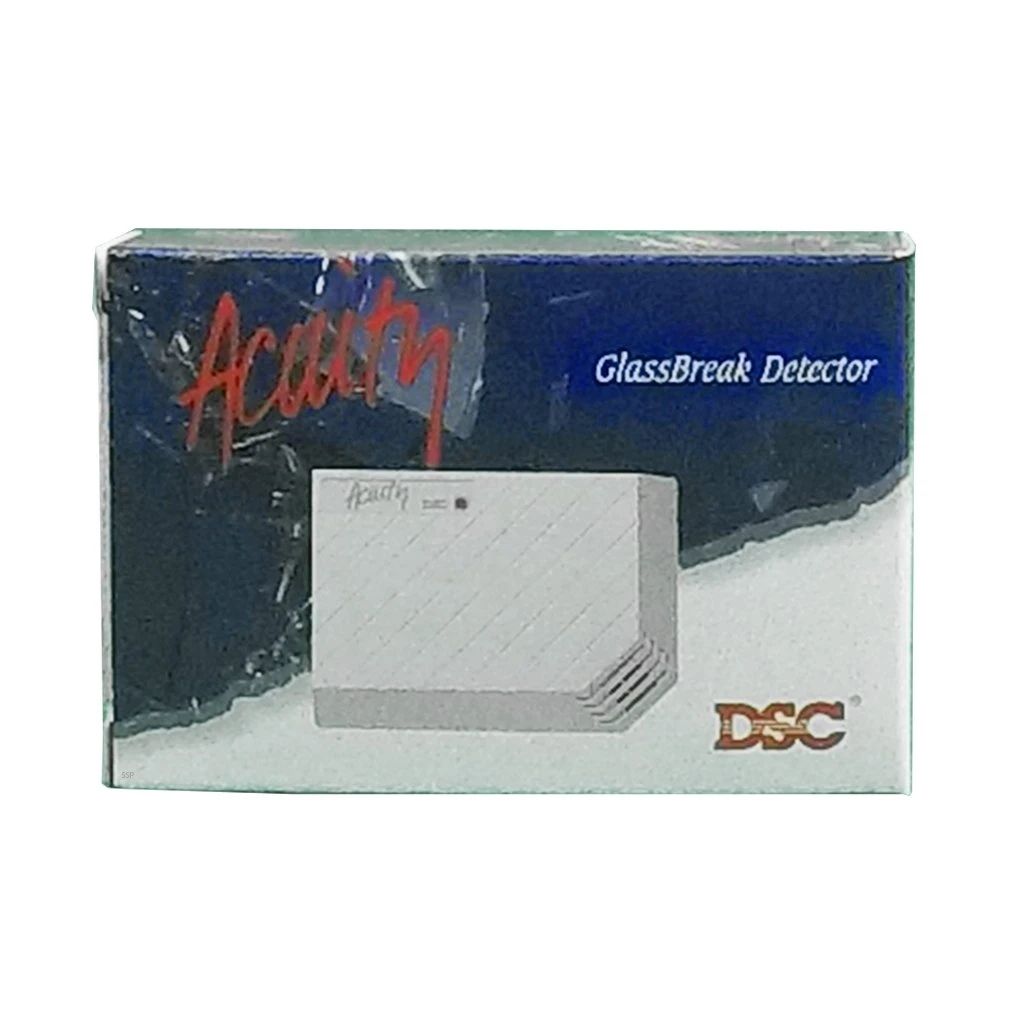

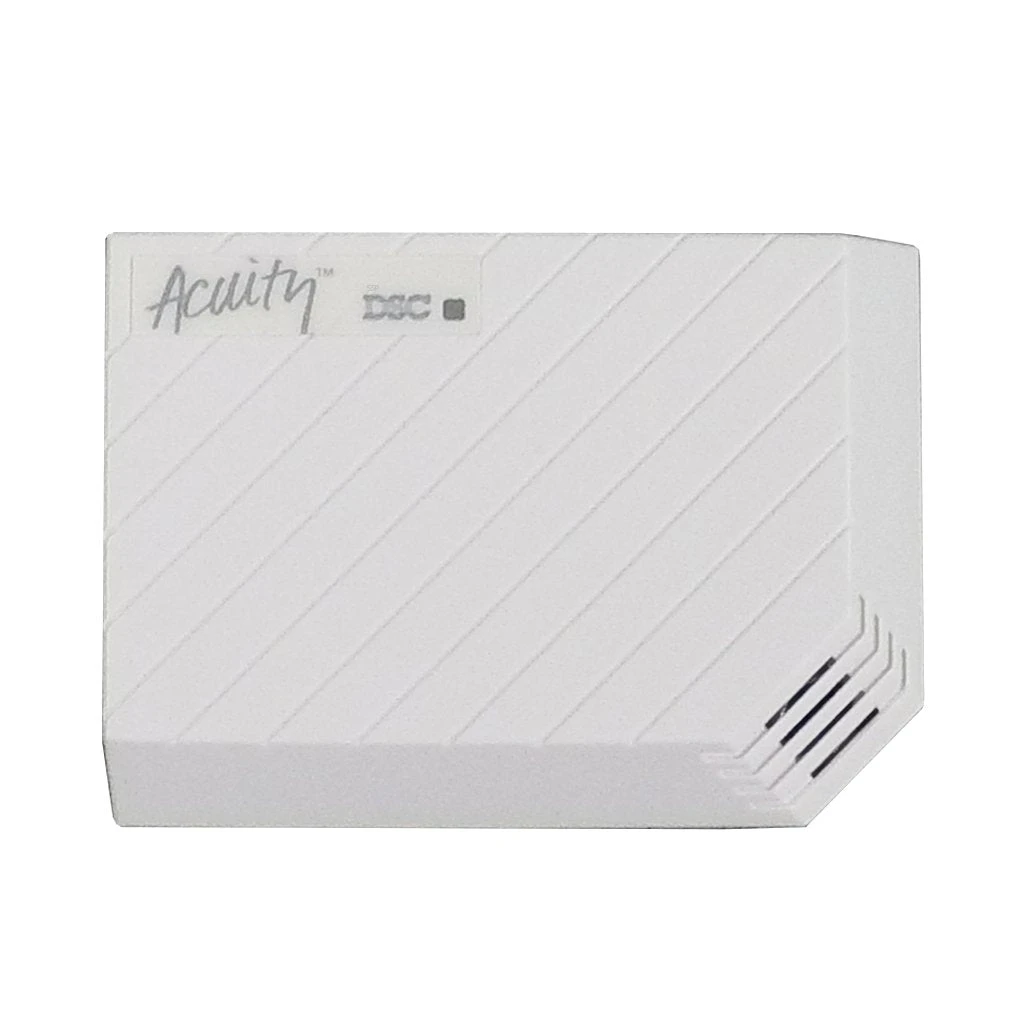

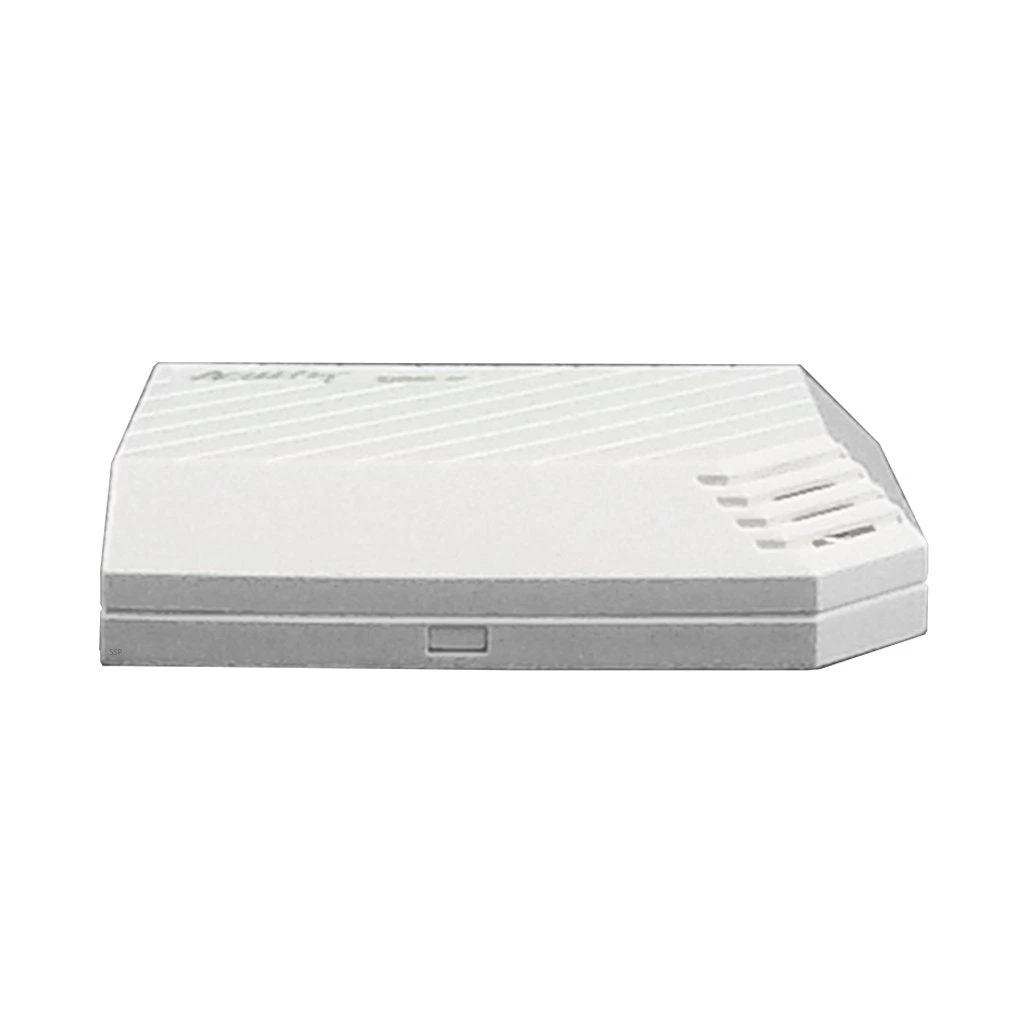

DSC AC100 Acuity Glassbreak Sensor

Original price was: $56.95.Current price is: $39.87.

SKU: YWXHC 7037331717 Categories: Alarm Parts & Accessories, Hardwired Sensors Detectors Tags: Glass Break Detectors, Hardwired Sensors

Your needs, our top priority.
Efficient and effective customer service, online.
Streamlined service, designed for your convenience.
Green products, guaranteed.

Description
Reviews (0)

The AC100 is a simple hardwired, surface-mount glass break detector. Fairly small in size and easy to install, this sensor will detect glass breaking from up to 25ft away. Each detector draws 25-35mA of power from your system.

DSC AC100 Acuity Glassbreak Sensor

Surface mounts on wall or ceiling. Has a detection range of up to 25 feet. (drapes and or blinds will reduce this range) Detects breakage on all common framed glass types such as plate, tempered, wired, and laminate. Features jumper selectable sensitivity and digital signal processing for greater detection sensitivity and improved false alarm immunity.

Specifications:

Voltage: 9-16 Vdc
Current: 25mA typical/35mA max.@ 12Vdc
Alarm Relay: Contact Ratings1A @ 24Vdc
Tamper Switch: Contact Ratings0.1A @ 24Vdc
Microphone type: Omnidirectional Electret
Dimensions (l x w x h):
89 x 64 x 20 mm (3.5 x 2.5 x 0.8 inch)
Alarm duration: 3 seconds
Additional operating modes:
Installer test mode: Jumper J1
Alarm memory mode: Jumper J2

AC-100 Installation manual
AC-100 Data sheet
