Alarm.com ADC-CSVR2008P 16 Channel Pro Stream Video Recorder With POE

This 16-channel Stream Video Recorder from alarm.com is perfect for continuous recording with Alarm.com wired and wireless cameras. Offering 8 ports for PoE cameras, and either a 3TB or 6TB hard drive out of the box, you can easily set up new or existing Alarm.com cameras. Alarm.com CSVRs are also capable of recording audio along with video using compatible cameras. Please note that the use of an Alarm.com SVR requires the SVR Streaming Video 24/7 Add-on.

---

Alarm.com ADC-CSVR2008P 16 Channel Pro Stream Video Recorder With POE

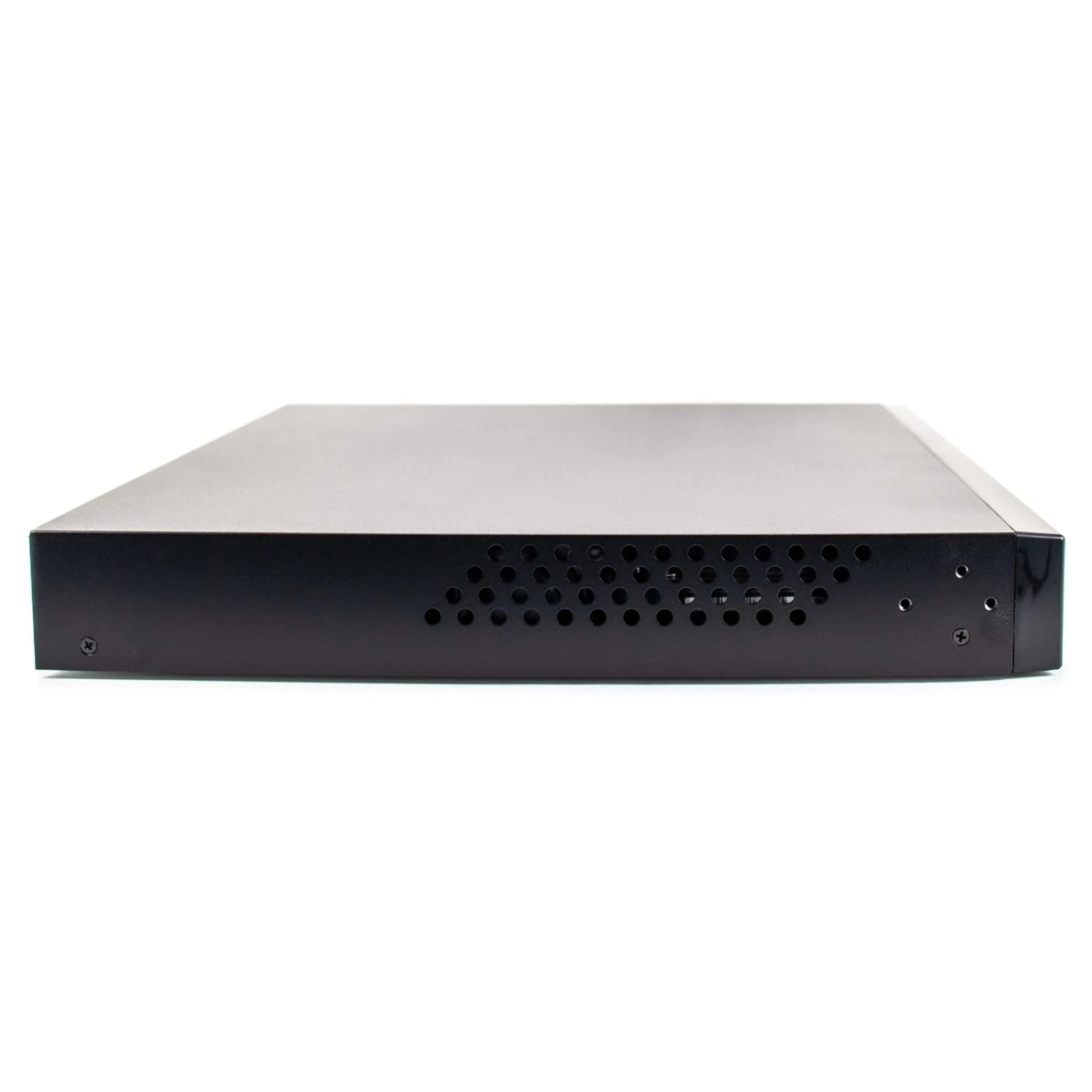

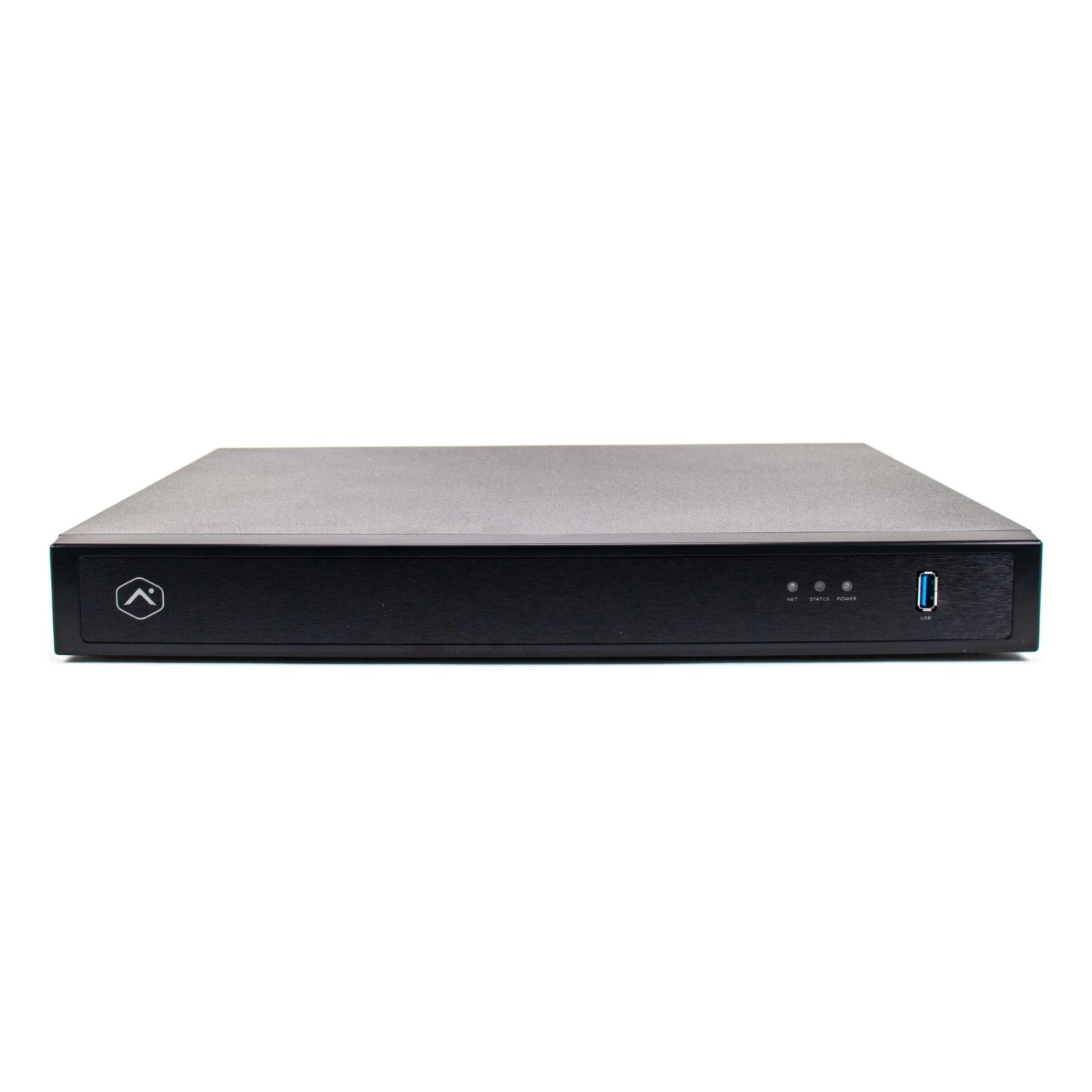

The Alarm.com ADC-CSVR2008P is a Commercial-rated Stream Video Recorder (CSVR) for locally storing Alarm.com camera video footage. The ADC-CSVR2008P supports up to 16 channels and has 8 onboard PoE ports for hardwired Alarm.com cameras. By default you can choose either a 3 TB Hard drive or a 6TB Hard drive, however, this can be upgraded by adding a second Hard drive if needed. To utilize the full 16 channels with PoE cameras, use additional PoE switches such as the TP-Link 10/100Mbps Desktop Switch with 4-Port PoE to expand your number of inputs. Alternatively, you can also use Alarm.com WiFi cameras with the CSVR2008P, however, it is highly recommended to use the Alarm.com Smart Gateway with WiFi cameras to give them dedicated bandwidth. Using compatible cameras you are also able to record audio to your Alarm.com CSVR as well. For a list of recommended cameras please check out the links below the description on this page. The Alarm.com CSVRs do NOT work with Alarm.com doorbell cameras.

Being an Alarm.com CSVR, this unit can be used both from the Alarm.com app and website, as well as through a local setup to give you flexibility of use. Regardless of the use case, the CSVR will automatically highlight and tag priority events on the system such as a security sensor being opened, or an alarm condition provided you have a security system tied to the same Alarm.com account. For the local setup, the ADC-CSVR2008P provides 2 HDMI outputs so you can connect 2x 4k monitors for local output of the recorded footage. Local display settings include live viewing of active cameras, playback for the duration of your saved footage, clip export, and archive export for storing priority footage. When using the CSVR for a local display you will need a keyboard and mouse connected to the SVR. The CSVR2008P also provides 3x USB 3.0 ports, one on the front and 2 on the rear, for fast export of the recorded video clips.

To utilize the ADC-CSVR2008P with Alarm.com cameras you must have the Alarm.com SVR Add-on enabled for your Alarm.com account. This Add-on allows you to add the SVR as a device on your account and set up the parameters for recording. Once the Add-on has been enabled and you have the CSVR powered and connected to the internet, you can use the “add camera” option through the Alarm.com app or website to connect the SVR to your account. In addition, an Alarm.com Video Service must cover all cameras you plan to use with your setup, including Alarm.com 4-Camera Add-ons when using more than 4 cameras.

Specs:

Recording Channels: Up to 16 cameras
Video Input: 16 channels @ up to 4MP (2688×1520)
Audio recording: With compatible cameras
Local Display Capabilities: Live view, Playback, Clip export, Archive export
Local Display Output: 2x HD out, up to 2840×2160
Local clip Export: 1x USB 3.0 (front), 2x USB 3.0 (rear)
Support Alarm.com HD Video Server: ADC-VS123
Ethernet Connectivity: 1x Client RJ45 10/100/1000 Mbps, 8x Camera PoE 802.3af RJ45 10/100 Mbps
Internal Storage: Up to 2x 3.5″ HDD, SATA 6 Gb/s, 16TB each
Dimensions: 14.4×12.5×1.9″ (36.6×31.6×4.8 cm)
Operating Temp: 32 – 104 degrees F (0 – 40 degrees C)
PoE Power Budget: 120W
Max power consumption: 200W
Max Weight: 8.7 lbs (3.9 kg)
Compliance: FCC Class A, IC, UL Listed
Requirements:
     Power: Standard electrical outlet
     Network: Ethernet connection to broadband internet
     Peripherals (required to interact with local display) USB Keyboard and Mouse

ADC-CSVR2008P Installation Guide
ADC-CSVR2008P Data Sheet
ADC-CSVR2008P compatible cameras
