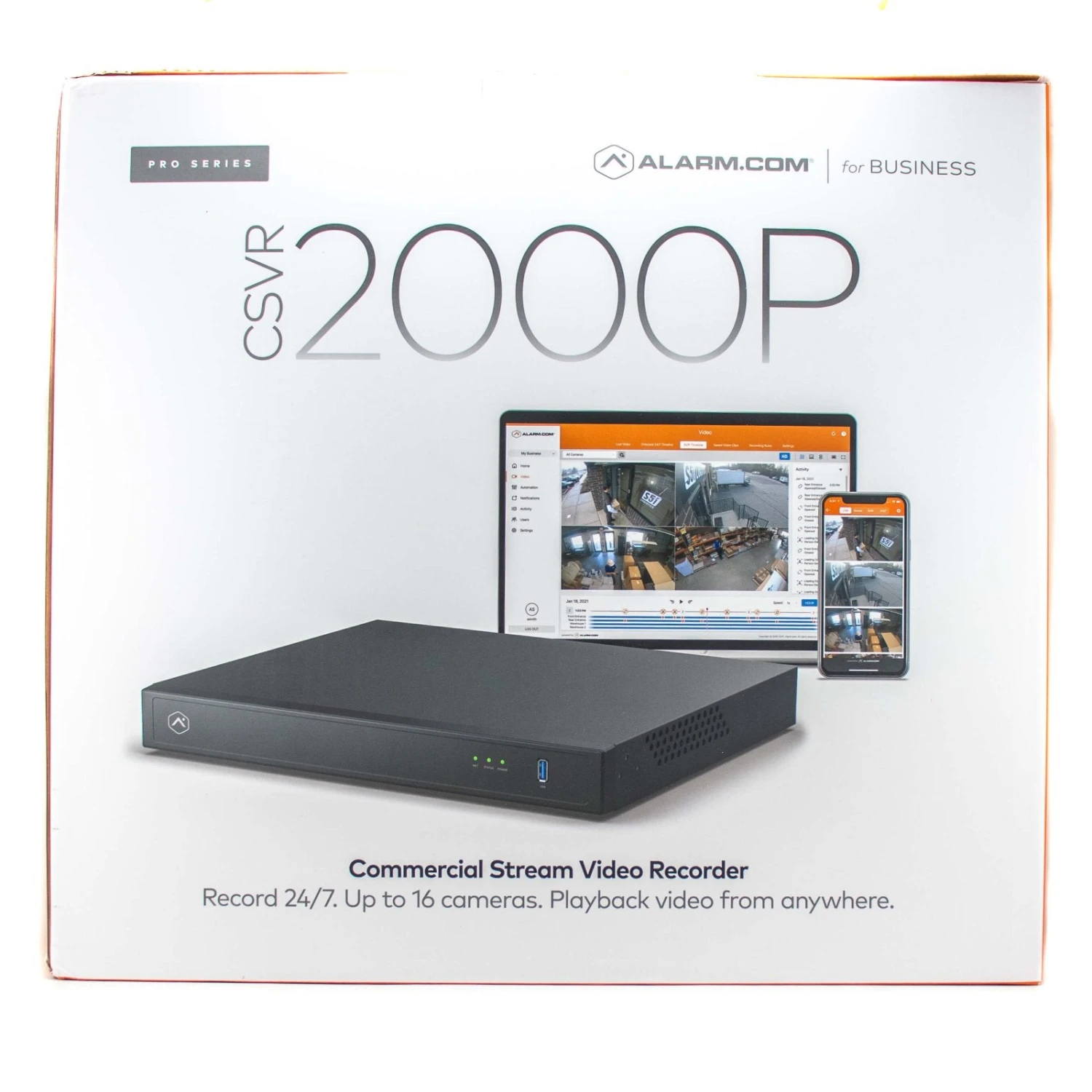

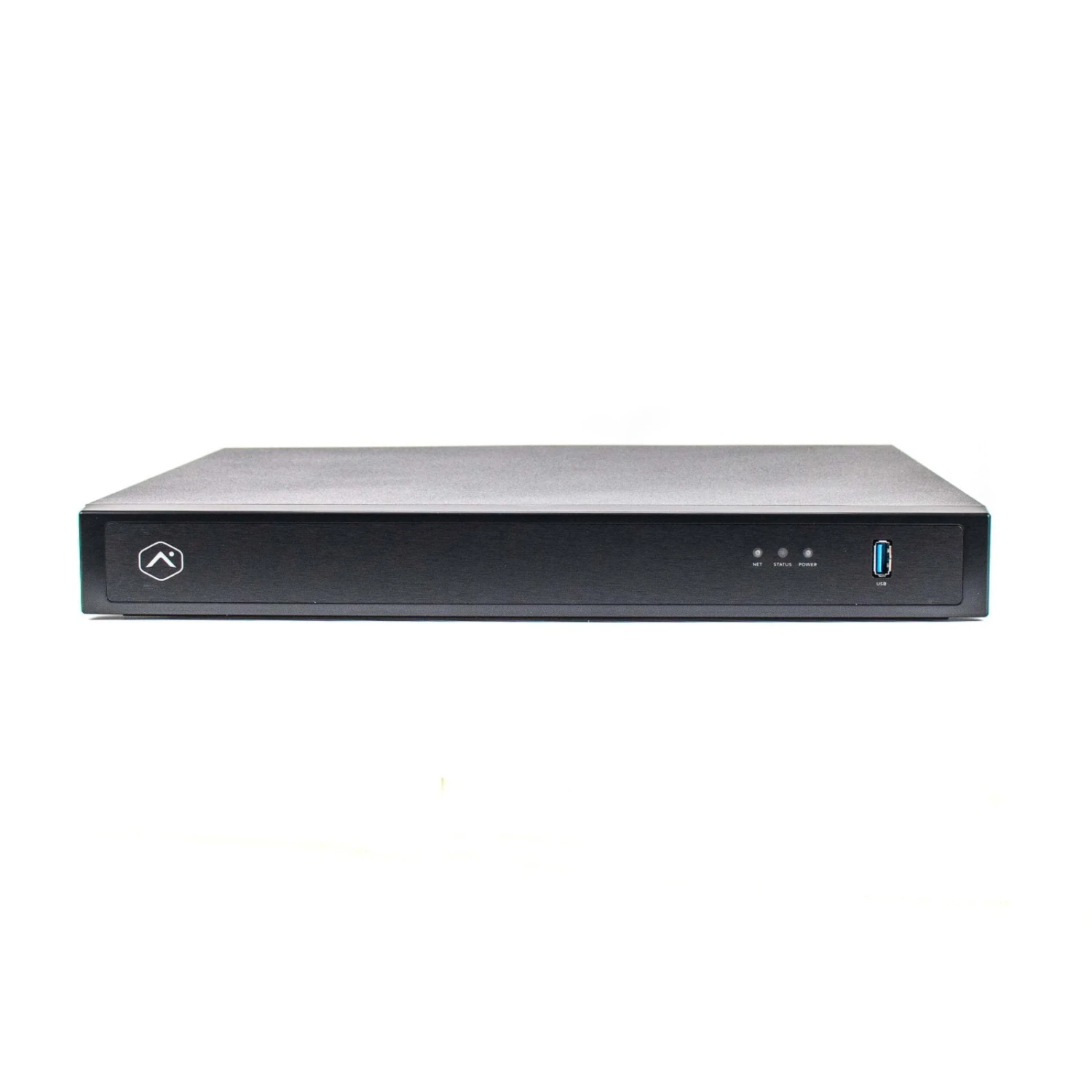

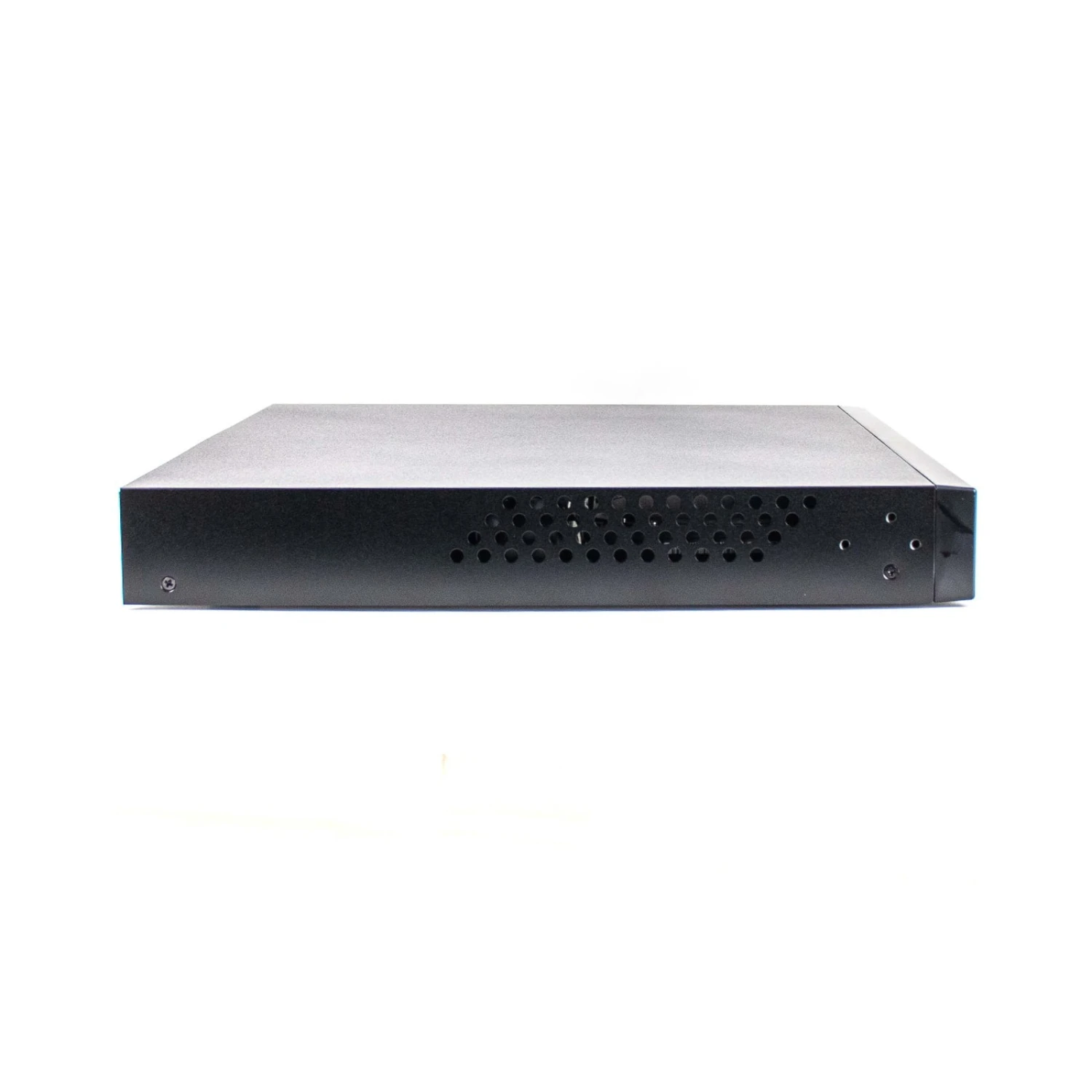

Alarm.com ADC-CSVR2000P 16 Channel Pro Stream Video Recorder

The ADC-CSVR2000P is a Stream Video Recorder designed for homes or businesses using mostly Alarm.com WiFi cameras who want 24/7 recording. By only offering a single PoE port on this SVR it is more cost-efficient for those that prefer wireless cameras. By using PoE switches, however, it works perfectly well for hardwired cameras. This model comes with a 2TB hard drive which can be upgraded to a whopping 32TB if you desire. Alarm.com CSVRs are now also capable of capturing and recording audio when using compatible cameras! Please note that the use of an Alarm.com SVR requires the SVR Streaming Video 24/7 Add-on.

---

Alarm.com ADC-CSVR2000P 16 Channel Pro Stream Video Recorder

This Alarm.com Commercial-rated Stream Video Recorder (CSVR) can be added to an Alarm.com account for local video storage. The ADC-CSVR2000P is a 16-channel video recorder with 2 Terabytes of storage capacity. This CSVR model has a single port for PoE cameras so utilizing a PoE switch such as the TP Link 10/100Mbps Desktop Switch with 4-Port PoE will be invaluable if you plan to use all hardwired Alarm.com cameras. If you plan to use more hardwired cameras, there is also the ADC-CSVR2008P that includes 8 PoE ports out of the box. Alarm.com WiFi cameras can be used with this unit however if you wish, but it is highly advised that you use an Alarm.com Smart Gateway as your access point for Alarm.com WiFi cameras if you connect them to the CSVR. Alarm.com doorbell cameras CANNOT be used with the CSVR, however. Alarm.com CSVRs are capable of recording audio as long as you have cameras capable of capturing audio.

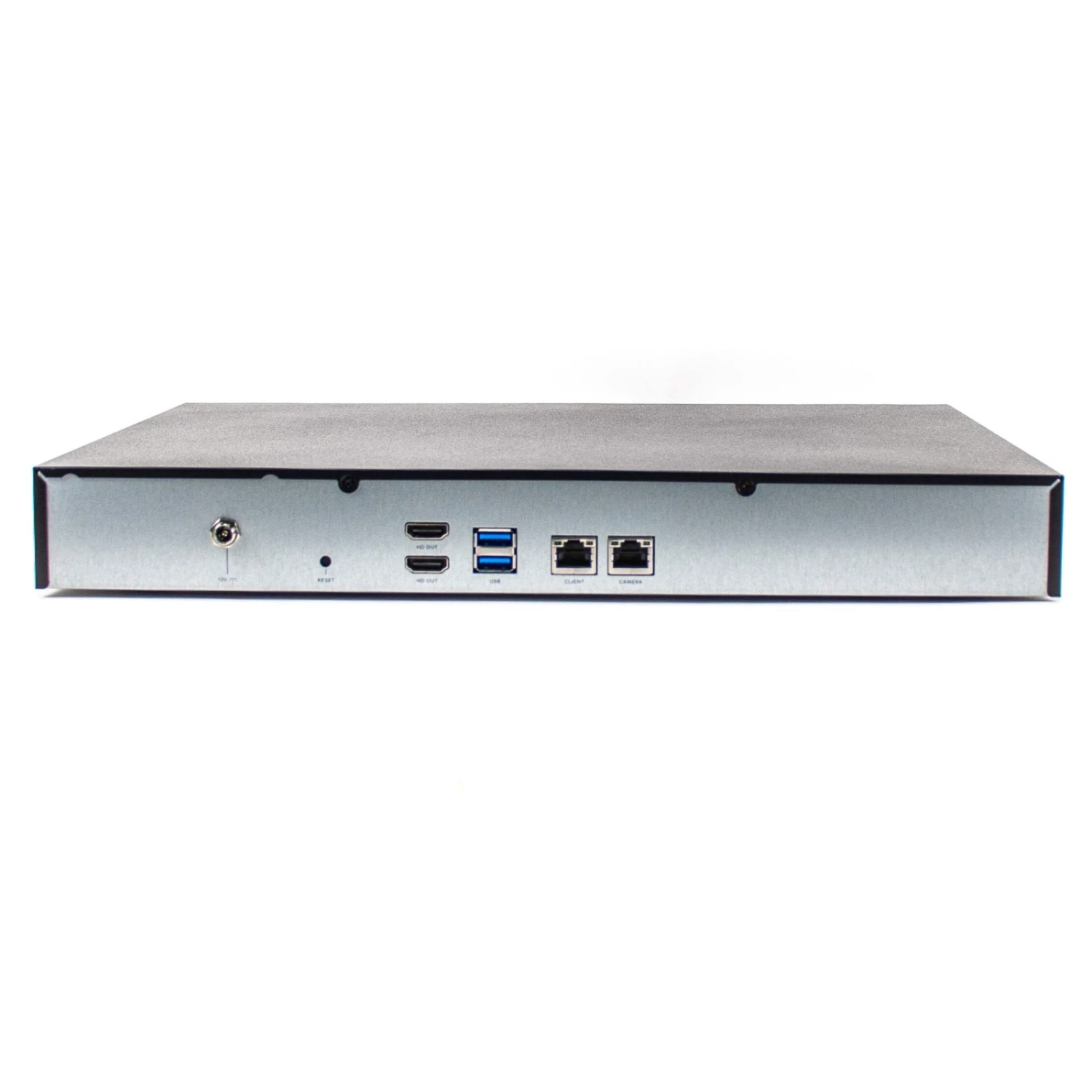

Alarm.com CSVRs can be used remotely by accessing it through the Alarm.com app and website, and it also provides 2x HDMI outputs. These HDMI outputs can be connected to up to 4K monitors for a local display of the video recordings. When using the CSVR for a local display you will need a keyboard and mouse connected to the CSVR. There are 3x USB 3.0 ports on the CSVR to allow the connection of peripheral devices, and for quickly exporting footage. When the ADC-CSVR2000P is connected to an account that also includes a security system, recorded footage will display tags for priority events like alarm conditions or sensor activations. This allows you to quickly pinpoint recording times so you can quickly access them locally or remotely.

Being an Alarm.com device, the ability to use the ADC-CSVR2000P must be added by using the Alarm.com SVR add-on service. This allows the CSVR to be enrolled on your Alarm.com account via the “add camera” function using the Alarm.com app or website. Once connected you can decide what cameras will stream to the CSVR for the local recording, and set parameters for the recording functionality. Keep in mind all Alarm.com cameras will still require the appropriate Alarm.com Video Service package and the 4-camera add-on service is required for any cameras over the initial 4.

Specs:

Recording Channels: Up to 16 cameras
Video Input: 16 channels @ up to 4MP (2688×1520)
Audio recording: With compatible cameras
Local Display Capabilities: Live view, Playback, Clip export, Archive export
Local Display Output: 2x HD out, up to 2840×2160
Local clip Export: 1x USB 3.0 (front), 2x USB 3.0 (rear)
Support Alarm.com HD Video Server: ADC-VS123
Ethernet Connectivity: 1x Client RJ45 10/100/1000 Mbps, 1x Camera PoE 802.3af RJ45 10/100 Mbps
Internal Storage: Up to 2x 3.5″ HDD, SATA 6 Gb/s, 16TB each
Dimensions: 14.4×12.5×1.9″ (36.6×31.6×4.8 cm)
Operating Temp: 32 – 104 degrees F (0 – 40 degrees C)
Power Adapter: 12VDC, 60W max
Max Weight: 8.2 lbs (3.7 kg)
Compliance: FCC Class A, IC, UL Listed
Requirements:
     Power: Standard electrical outlet
     Network: Ethernet connection to broadband internet
     Peripherals (required to interact with local display) USB Keyboard and Mouse

ADC-CSVR2000P install guide
ADC-CSVR2000P data sheet
ADC-CSVR2000P compatible cameras
